PERKO 12V Fold-Down White All-Round Navigation Light, Vertical Mount – 1137-DP-CHR

Description

PERKO 12V Fold-Down White All-Round Navigation Light, Vertical Mount – 1137-DP-CHR

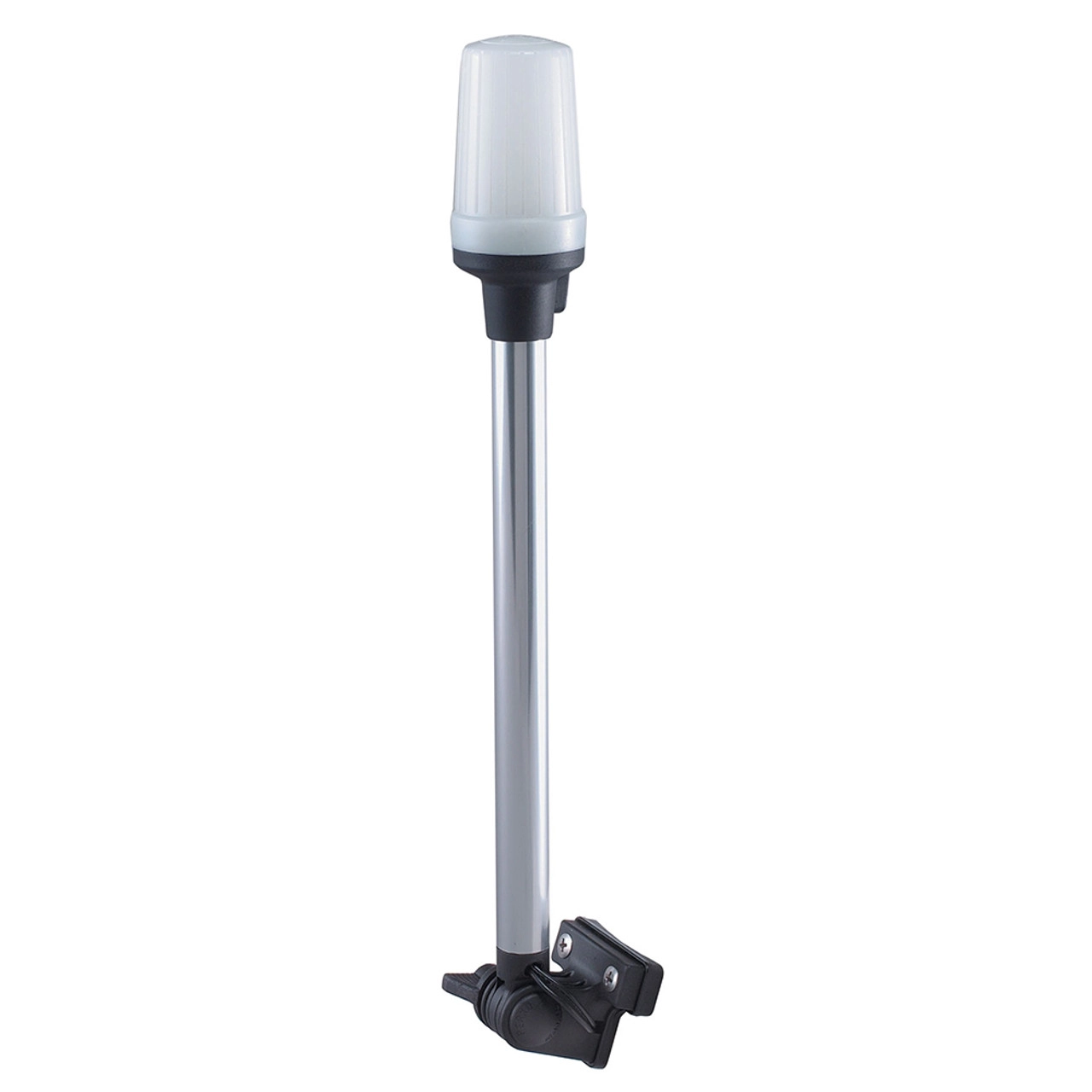

This adjustable pole light combines a translucent white globe with a fold-down base for windshields, T-tops, rails, arches and hardtops. The mount can be folded for clearance while retaining the original installed position when raised.

Product Details

• USCG 2 nm certified for sail or power-driven vessels under 20 m (65.6 ft.).
• White translucent polymer globe with polymer top and 19.1 mm anodized-aluminum pole.
• Chrome-plated and black finish with gold-plated contacts.
• Vertical mount folds down 90 degrees in either direction along the plane of the mounting plate.
• Adjustable-angle base includes an adapter for flat or 45-degree V-type surfaces.
• This Figure 1134/1137 base style does not require through-base wiring; use the specified replacement base for the original configuration.
• 12V bulb included; 11W power draw and approximately 0.94A current.
• Replacement bulb: 0337012DP; replacement globe: 0201DP0WHT; replacement locking knob: 1144A00BLK.
• Replacement base: 1054DP0CHR.

What’s in the Box

• Fold-down light and pole assembly.
• Adjustable mounting base.
• Flat/V-mount adapter.
• 12V bulb.

Specifications

• PERKO Manufacturer Part Number: 1137DP0CHR
• Product Type: Fold-down white all-round navigation light
• Certification: USCG 2 nm
• Vessel Length: Under 20 m
• Mounting Orientation: Vertical
• Overall Height: 394 mm (15-1/2 in.)
• Base Dimensions: 57.2 x 15.9 mm (2-1/4 x 5/8 in.)
• Pole Diameter: 19.1 mm (3/4 in.)
• Voltage: 12V DC
• Power Draw: 11W / approximately 0.94A
• Bulb: Included; replacement 0337012DP
• Globe: 0201DP0WHT
• Contacts: Gold plated
• Mounting Fasteners: #8 screws
