PANTHER Adjustable Stainless Steel Bracket for Auxiliary Outboards up to 15 HP – 55-0408SS

Description

PANTHER Adjustable Stainless Steel Bracket for Auxiliary Outboards up to 15 HP – 55-0408SS

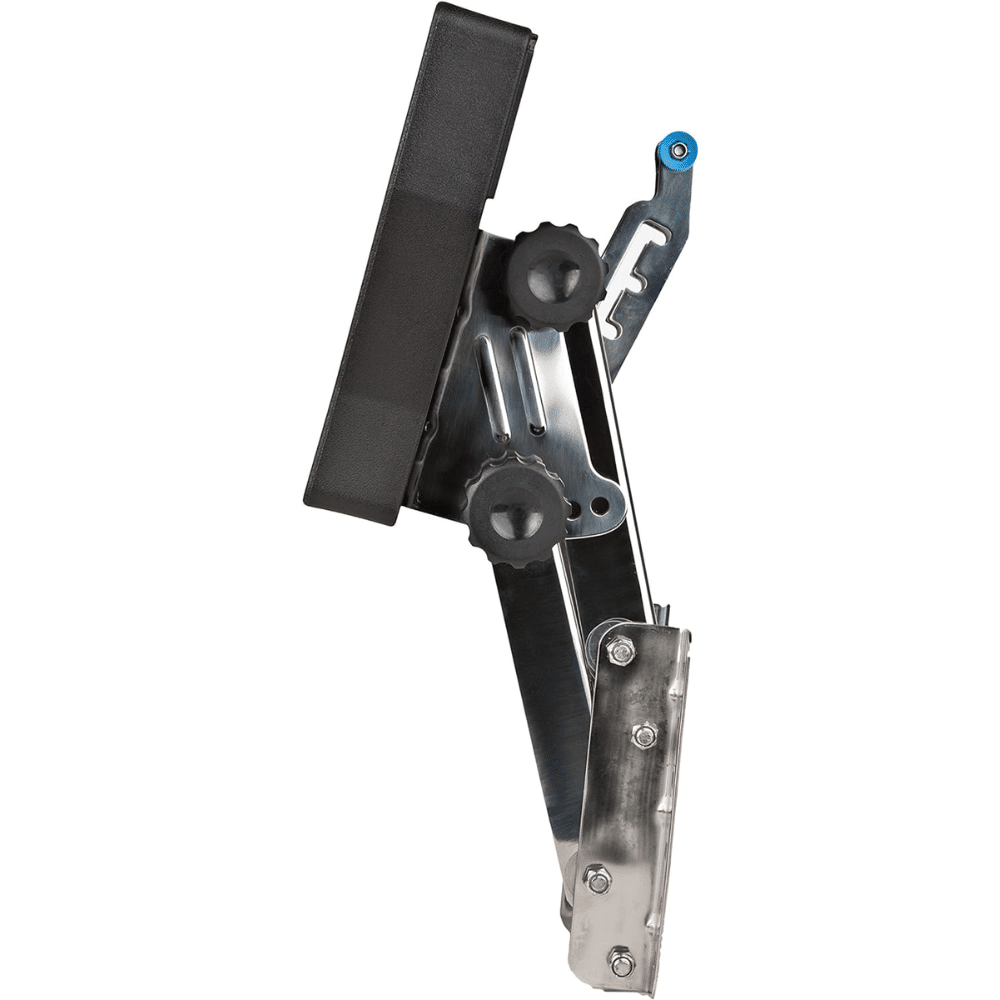

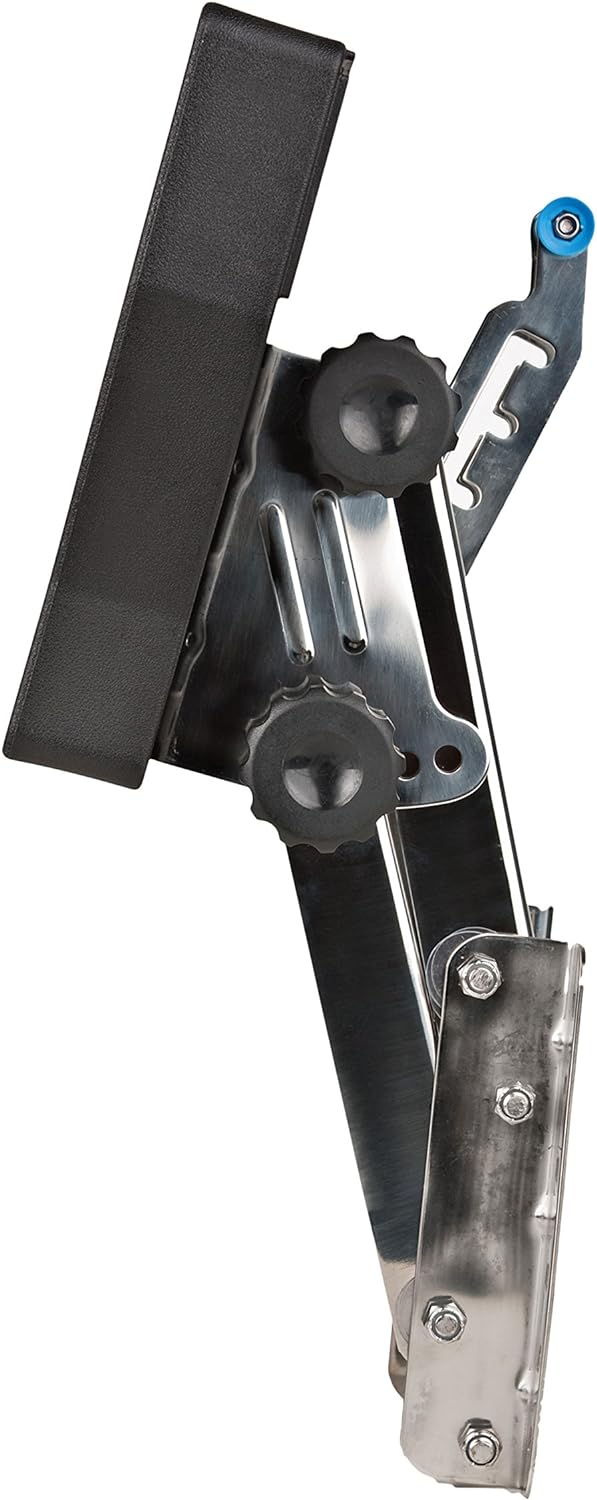

The PANTHER 55-0408SS is a heavy-duty stainless auxiliary motor bracket built extra-tough and extra-wide for secondary engines, including high-torque four-stroke kickers. It features stainless torsion springs to assist lifting and a 2″ weatherproof, maintenance-free polypropylene mounting board. The bracket is rated for long or short shaft engines and provides 11″ of vertical travel to help set proper running height.

• Rated for auxiliary outboards up to 15 HP
• 11″ vertical travel with 4 vertical running positions
• Four-position lock bar
• Five-position trim adjustment bolt helps fit reverse-angle transoms
• Stainless torsion springs assist lifting
• 2″ weatherproof, maintenance-free polypropylene motor board
• Includes motor safety cable

Specifications

• Manufacturer Part #: 55-0408SS
• Type: Adjustable stainless auxiliary outboard bracket
• Max Engine Rating: Up to 15 HP
• Vertical Travel: 11″ (27.94 cm)
• Setback (Up Position): 8-3/4″ (22.23 cm)
• Setback (Down Position): 14″ (35.56 cm)
• Motor Mount Plate: 11.5″ W x 10.75″ H (29.21 cm x 27.31 cm)
• Materials: Stainless steel body with polypropylene board
• Included: Motor safety cable
• Requires: Backing plate; stainless steel nuts & bolts
• Product Weight: 20 lb (9.07 kg)

Installation Notes

Mount on port or starboard transom where it will not interfere with the primary engine or rudder. Drill four 3/8″ holes and seal with RTV silicone. Use 5/16 stainless fasteners and a backing plate for transoms 2″ or less. Greasing pivot bolts occasionally will help maintain smooth operation.
