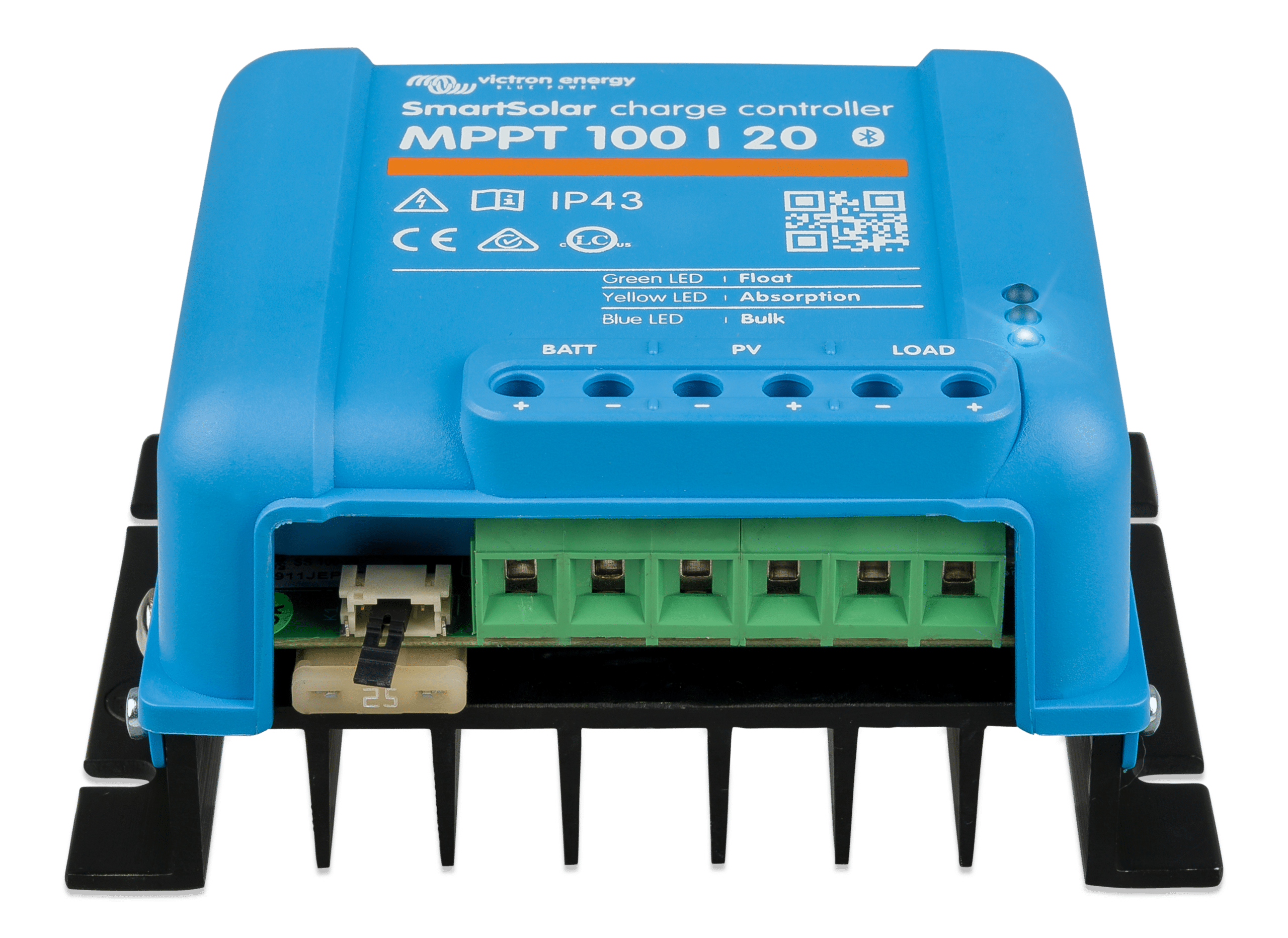

VICTRON ENERGY SmartSolar MPPT Solar Charge Controller 100V 20A 12/24/48V – SCC110020160R

Description

VICTRON ENERGY SmartSolar MPPT Solar Charge Controller 100V 20A 12/24/48V – SCC110020160R

The Victron Energy SmartSolar MPPT 100/20 is a compact, high-efficiency solar charge controller designed to maximize energy harvest from your solar panels and deliver it efficiently to your battery bank. Using ultra-fast Maximum Power Point Tracking technology, the controller continually adjusts to changing solar conditions to help achieve the best possible charging performance, even in variable weather or partial shading.

This SmartSolar model supports 12V, 24V, and 48V battery systems and provides up to 20A of charge current. Built-in Bluetooth allows easy setup, monitoring, and firmware updates through the VictronConnect app, so you can view solar input, battery charging status, history, and system performance directly from a phone or tablet.

• 20A SmartSolar MPPT charge controller for 12V, 24V, and 48V battery systems
• 100V maximum PV open-circuit voltage for flexible solar panel configuration
• Ultra-fast MPPT technology helps maximize solar harvest in changing light conditions
• Built-in Bluetooth for setup, monitoring, and updates through the VictronConnect app
• Programmable charging and intelligent battery management for lead-acid and lithium battery systems

The SmartSolar MPPT 100/20 is well suited for boats, RVs, vans, cabins, trailers, and other independent power systems where reliable solar charging and simple wireless monitoring are important. Its natural convection cooling, high conversion efficiency, and protective charging features make it a dependable choice for compact solar installations.

Specifications

• Brand: Victron Energy
• Part Number: SCC110020160R
• Product Type: MPPT solar charge controller
• Model: SmartSolar MPPT 100/20
• Nominal Battery Voltage: 12V / 24V / 48V auto select
• Rated Charge Current: 20A
• Maximum PV Open Circuit Voltage: 100V DC
• Maximum PV Short Circuit Current: 20A
• Maximum Load Current: 20A at 12V/24V, 10A at 48V
• Peak Efficiency: 98%
• Communication: Built-in Bluetooth
• App Compatibility: VictronConnect
• Cooling: Natural convection
• Operating Temperature: -30°C to +60°C, full rated output up to 40°C
• Approximate Dimensions: 4.44" L x 3.93" W x 2.37" H
• Approximate Weight: 1.44 lb
• Country of Origin: India
• GTIN/EAN: 8719076043027
