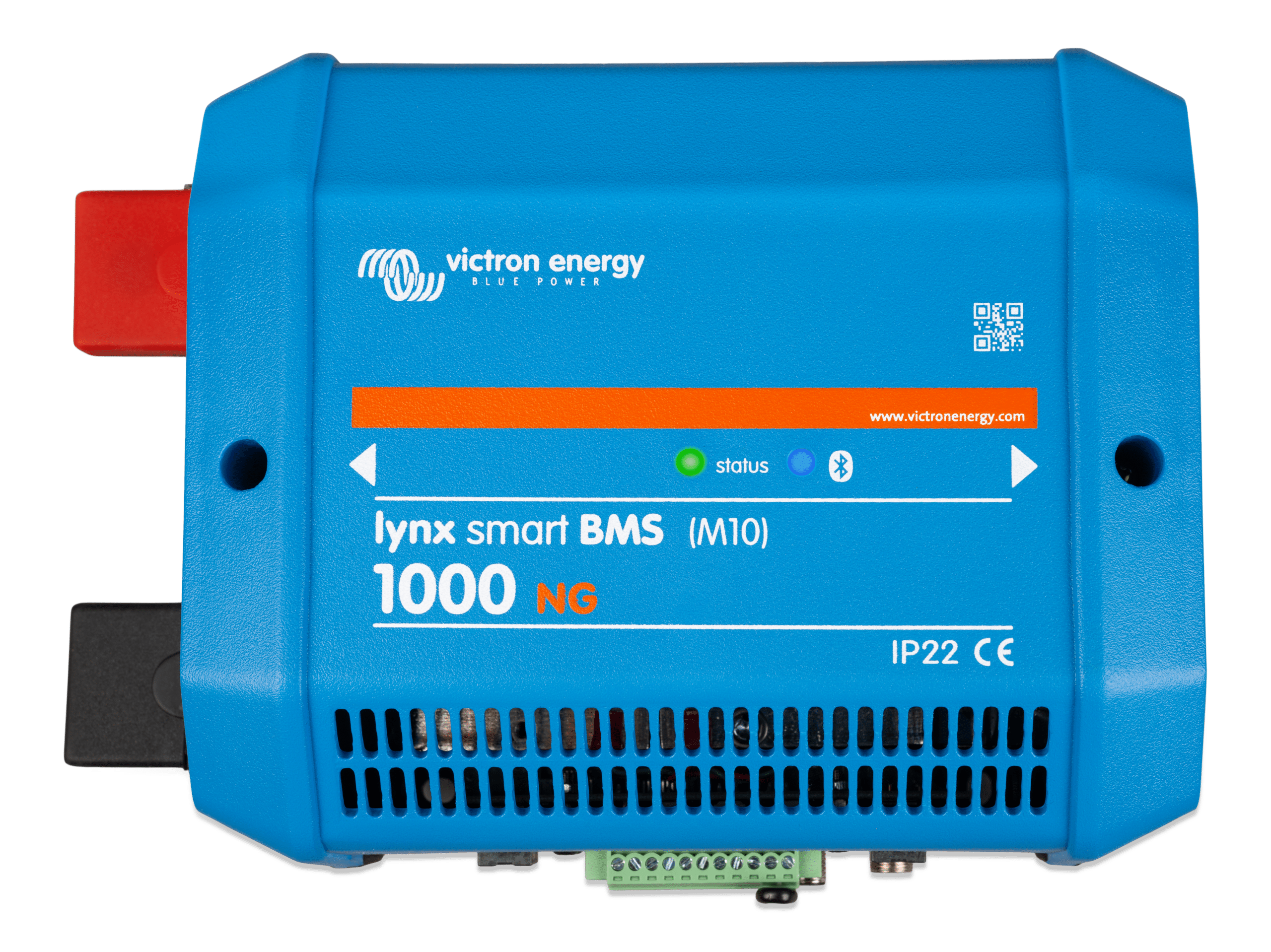

VICTRON ENERGY Lynx Smart BMS NG 1000A M10 Battery Management System – LYN034170310

Description

VICTRON ENERGY Lynx Smart BMS NG 1000A M10 Battery Management System – LYN034170310

The Victron Energy Lynx Smart BMS NG 1000A M10 is a dedicated battery management system designed specifically for Victron Lithium NG batteries. It provides battery protection, system control, monitoring, and communication for high-capacity lithium battery banks used in marine, RV, off-grid, mobile, and backup power systems.

This 1000A M10 version is part of Victron’s modular Lynx DC distribution system and integrates with compatible M10 Lynx Distributor products. It supports Victron Lithium NG battery banks in 12V, 24V, and 48V systems and can be used with battery configurations in series, parallel, or series-parallel arrangements. Built-in Bluetooth allows setup and monitoring through VictronConnect, while VE.Can enables integration with GX devices such as Cerbo GX and Ekrano GX.

• Dedicated 1000A battery management system for Victron Lithium NG battery banks
• Built-in 1000A contactor provides a fallback safety mechanism and remote-controllable main system switch
• Integrated battery monitor displays state of charge, system status, and battery data
• Bluetooth, VictronConnect, VE.Can, and GX device integration for local and remote monitoring
• Pre-charge circuit helps reduce inrush current when connecting capacitive loads such as inverters

The Lynx Smart BMS NG also provides pre-alarm signalling, allow-to-charge and allow-to-discharge control, a programmable relay, auxiliary output, remote on/off capability, and support for up to four connected Lynx Distributor modules. It is important to note that the Lynx Smart BMS NG is for Victron Lithium NG batteries and is not the same as the earlier Lynx Smart BMS used with Victron Lithium Battery Smart models.

Specifications

• Brand: Victron Energy
• Part Number: LYN034170310
• GTIN/EAN: 8719076063568
• Product Type: Lithium battery management system
• Model: Lynx Smart BMS 1000 NG M10
• Battery Compatibility: Victron Lithium NG batteries
• Supported System Voltages: 12V, 24V, and 48V
• Supply Voltage Range: 9 – 60 VDC
• Maximum Input Voltage: 75 VDC
• Main Safety Contactor Continuous Current Rating: 1000A
• Main Safety Contactor Peak Current Rating: 1200A for 5 minutes
• Busbar Connection: M10
• Busbar Torque: 33 Nm
• Busbar Material: Tinned copper
• Busbar Dimensions: 8 mm x 30 mm
• Maximum Number of Batteries: Up to 50 Victron Lithium NG batteries
• Lynx Distributor Support: Up to 4 modules
• Communication: Bluetooth, VE.Can, and VictronConnect
• GX Device Compatibility: Yes, through VE.Can
• Battery BMS Cable Connection: Male and female circular 3-pole connector with M8 screw ring
• I/O Connection: Removable 13-pin multi-connector with screw terminals
• AUX Output Maximum Current: 1.1A continuous, resettable fuse protected
• Allow-to-Charge Port Maximum Current: 0.5A at 60 VDC, resettable fuse protected
• Allow-to-Discharge Port Maximum Current: 0.5A at 60 VDC, resettable fuse protected
• Programmable Relay: SPDT, 2A at 60 VDC maximum
• Off Mode Power Consumption: 0.3 mA
• Standby Power Consumption: Approximately 0.6W
• On Mode Power Consumption: Approximately 4.2W
• Enclosure Material: ABS
• Approximate Dimensions: 230 mm x 180 mm x 100 mm
• Approximate Weight: 2.7 kg
• Operating Temperature Range: -40°C to +60°C
• Storage Temperature Range: -40°C to +60°C
