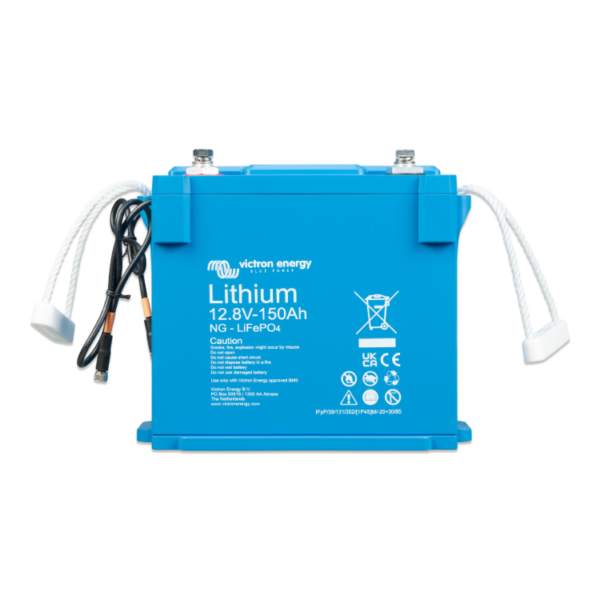

VICTRON ENERGY LiFePO4 Battery 12.8V 150Ah NG – BAT512115620

Description

VICTRON ENERGY LiFePO4 Battery 12.8V 150Ah NG – BAT512115620

The Victron Energy LiFePO4 Battery 12.8V 150Ah NG is a next-generation lithium iron phosphate battery designed for 12V marine, RV, off-grid, and energy storage systems. With 1,920Wh of nominal energy, integrated cell balancing, cell monitoring, and communication through a compatible Victron NG BMS, this battery is built for reliable deep-cycle performance in advanced Victron power systems.

• 12.8V 150Ah lithium iron phosphate battery with 1,920Wh nominal energy capacity
• Integrated cell balancing and cell monitoring for advanced battery protection
• Supports real-time battery data through a compatible Victron NG BMS, GX device, VRM Portal, or VictronConnect
• IP65 protection rating for resistance to dust and low-pressure water jets
• Suitable for series, parallel, or series/parallel battery bank configurations when used with a compatible Victron NG BMS

A compatible Victron Battery Management System is required and must be purchased separately. Victron lists the Lynx Smart BMS NG 500A or 1000A as the required BMS option for Lithium NG batteries. NG batteries should not be mixed into non-NG Victron lithium battery systems.

Specifications

• Manufacturer: Victron Energy
• Part Number: BAT512115620
• Product Type: Lithium Iron Phosphate Battery
• Battery Series: Victron Lithium NG
• Nominal Voltage: 12.8V
• Nominal Capacity at 25°C: 150Ah
• Nominal Energy at 25°C: 1,920Wh
• Battery Chemistry: LiFePO4 / LFP
• Round Trip Efficiency: 92%
• Cycle Life at 80% Depth of Discharge: 2,500 cycles
• Cycle Life at 70% Depth of Discharge: 3,000 cycles
• Cycle Life at 50% Depth of Discharge: 5,000 cycles
• Maximum Continuous Discharge Current: 150A
• Maximum Pulse Discharge Current: 300A for 10 seconds
• End of Discharge Voltage: 11.2V
• Internal Resistance: 1 mΩ
• Charge Voltage: 14.0V to 14.4V
• Float Voltage: 13.5V
• Maximum Continuous Charge Current: 150A
• Maximum Pulse Charge Current: 225A for 10 seconds
• Required BMS: Victron Lynx Smart BMS NG 500A or 1000A, sold separately
• Cell Measurements: Cell voltages, cell temperatures, and battery current
• Battery BMS Interface: Male and female cable with M8 circular connector and high-speed digital communication, 50 cm length
• Bluetooth: Through compatible Victron NG BMS
• Maximum Batteries per BMS: 50 batteries for up to 192 kWh per BMS in 12V systems
• Firmware Updates: Automatically updated by BMS
• Operating Temperature, Discharge: -20°C to +50°C
• Operating Temperature, Charge: +5°C to +50°C
• Storage Temperature: -45°C to +70°C
• Humidity: Maximum 95% non-condensing
• Protection Class: IP65
• Mounting Options: Strap or mounting brackets; brackets included
• Can Be Placed on Side: Yes, but not with battery terminals facing down
• Power Connection: M8 threaded inserts and bolts
• Dimensions: 205 x 250 x 205 mm
• Weight: 14 kg
• UPC: 190760647253
• GTIN: 08719076064725
