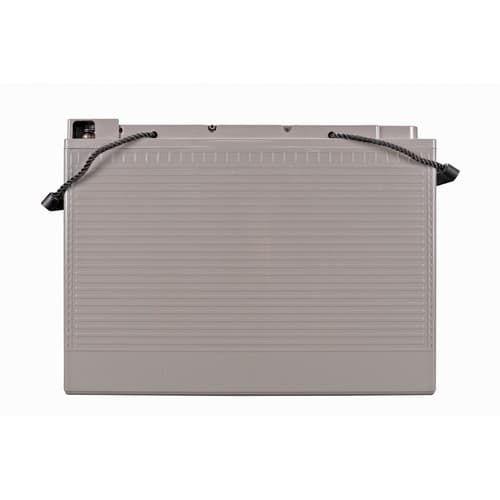

VICTRON ENERGY 12V/165Ah AGM Telecom Battery with M8 Terminals – BAT412151164

Description

Victron Energy 12V/165Ah AGM Telecom Battery with M8 Terminals – BAT412151164

The Victron Energy BAT412151164 is a heavy-duty 12V AGM telecom battery designed for dependable deep-cycle power in space-limited installations. With its slim footprint and front-access M8 terminals, this battery is well suited for telecom racks, marine battery banks, vehicle power systems, backup power, and other applications where access and floor space are limited.

• 12V AGM telecom battery with 165Ah nominal capacity
• Front-access M8 terminals for convenient rack, cabinet, marine, and vehicle installations
• Slim 548 mm x 105 mm footprint helps save valuable installation space
• Low internal resistance allows very high charge and discharge rates
• Sealed VRLA AGM construction with low self-discharge and high cyclic capability

Victron AGM telecom batteries are designed for applications that need dependable stored energy, strong discharge performance, and long service life. The absorbed glass mat construction immobilizes the electrolyte in a glass-fibre mat, helping provide a maintenance-free battery suitable for demanding DC power systems.

Specifications

• Manufacturer: Victron Energy
• Part Number: BAT412151164
• Product Type: AGM telecom battery
• Nominal Voltage: 12V
• Nominal Capacity: 165Ah at 25°C to 10.5V
• Terminal Type: M8 front-access terminals
• Battery Technology: AGM, sealed VRLA
• Cold Cranking Amps: 1500A at -18°C
• DIN Cold Start Current: 900A at -18°C
• Short Circuit Current: 5000A
• Reserve Capacity: 320 minutes
• Absorption Voltage: 14.4V to 14.7V at 20°C
• Float Voltage: 13.6V to 13.8V at 20°C
• Storage Voltage: 13.2V at 20°C
• Shelf Life: 1 year at 20°C
• Float Design Life: 12 years at 20°C
• Cycle Design Life: 500 cycles at 80% depth of discharge
• Cycle Design Life: 750 cycles at 50% depth of discharge
• Cycle Design Life: 1800 cycles at 30% depth of discharge
• Dimensions: 548 mm L x 105 mm W x 316 mm H
• Weight: 49 kg
• EAN/GTIN: 8719076037064
