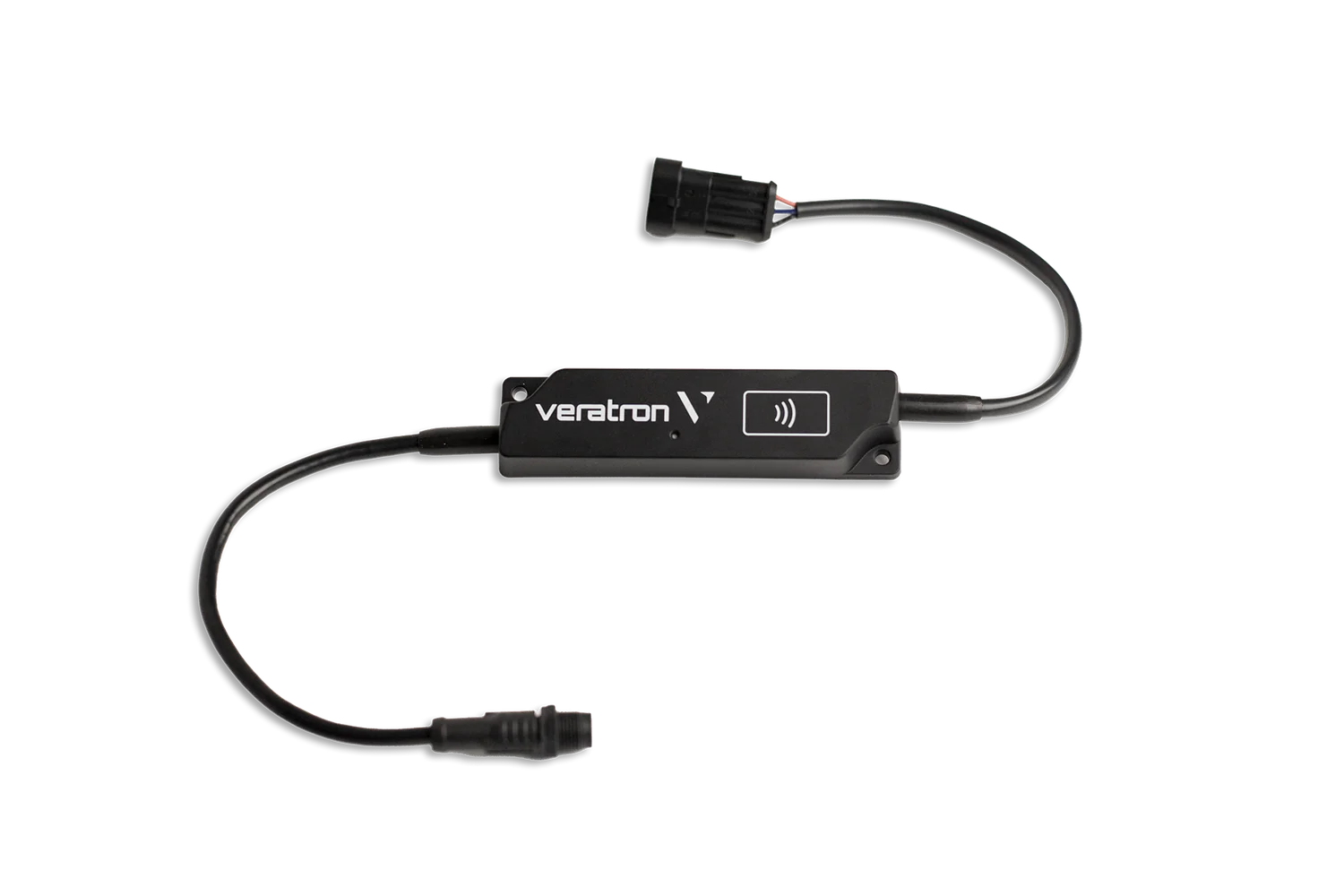

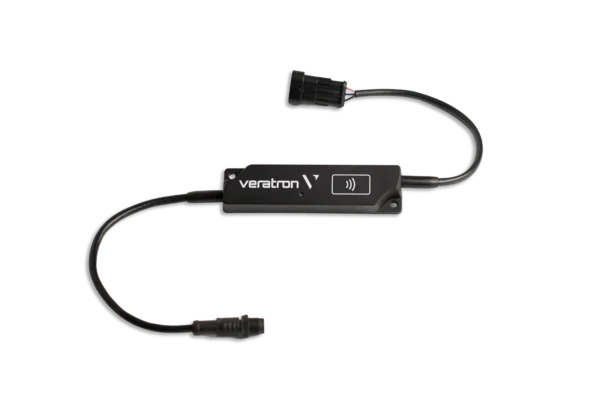

VERATRON LinkUp Gateway 0-5V Analog to NMEA 2000 – B00059201

Description

VERATRON LinkUp Gateway 0-5V Analog to NMEA 2000 – B00059201

The Veratron LinkUp 0-5V gateway is a compact single-sensor interface that upgrades analog vessel and engine sensor data to NMEA 2000, with app-based configuration and marine-grade protection.

• Converts analog sensor information to NMEA 2000 data
• Wireless configuration through the Veratron LinkUp mobile app
• Customizable sensor curves and warning thresholds
• Approved for engine compartment installation to ISO 8846:1990
• IPX9/K protected LinkUp housing

Specifications

• Brand: Veratron
• Manufacturer part number: B00059201
• Function: Analog sensor to NMEA 2000 gateway
• Input signal: 0-5V analog
• Output signal: NMEA 2000
• Nominal voltage: 12V from NMEA 2000 network
• Dimensions: 125 mm x 32 mm plus cables
• Protection rating: IPX9/K
