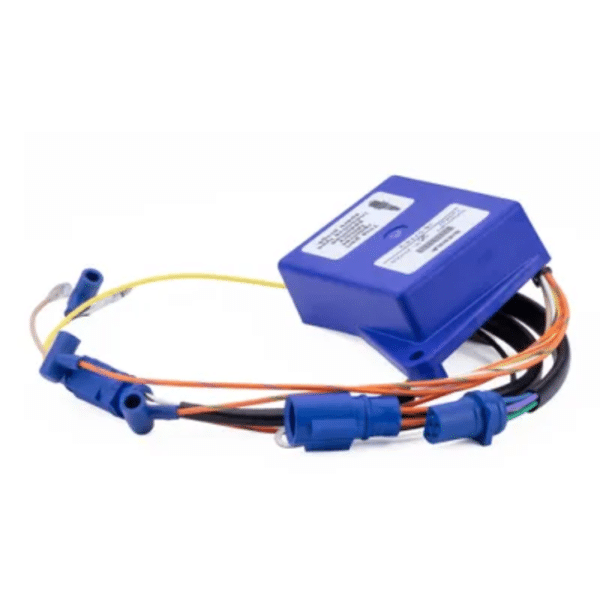

SIERRA Johnson/Evinrude 25-70 HP Power Pack with Quick Start/S.L.O.W. – 18-5774-2

Description

SIERRA Johnson/Evinrude 25-70 HP Power Pack with Quick Start/S.L.O.W. – 18-5774-2 is the application-specific electronic ignition module for 3-cylinder loop-charged Johnson/Evinrude 25-70 HP outboards in specified 1993-2001 applications.

Features

• Application: 3-cylinder loop-charged Johnson/Evinrude 25-70 HP outboards in specified 1993-2001 applications
• 5-wire timer-base system; Quick Start; S.L.O.W.; 6700 RPM limiter
• Replaces OMC/BRP references 584808, 585145, 585189, 5004532, 5004533
• Controls primary ignition switching for the matched engine family
• Aftermarket interchange: CDI 113-4808; Mallory 9-25028

Specifications

• Application: 3-cylinder loop-charged Johnson/Evinrude 25-70 HP outboards in specified 1993-2001 applications
• Ignition type: Capacitor-discharge/electronic
• Service detail: 5-wire timer-base system; Quick Start; S.L.O.W.; 6700 RPM limiter
• OE references: 584808, 585145, 585189, 5004532, 5004533
• Part number: 18-5774-2

Interchange

• OMC/BRP 584808, 585145, 585189, 5004532, 5004533
• CDI 113-4808; Mallory 9-25028
