PERKO Black Polymer Broad-Flange Thru-Hull for 29 mm (1-1/8 in.) Hose – 328-06A-BLACK

Description

PERKO Black Polymer Broad-Flange Thru-Hull for 29 mm (1-1/8 in.) Hose – 328-06A-BLACK

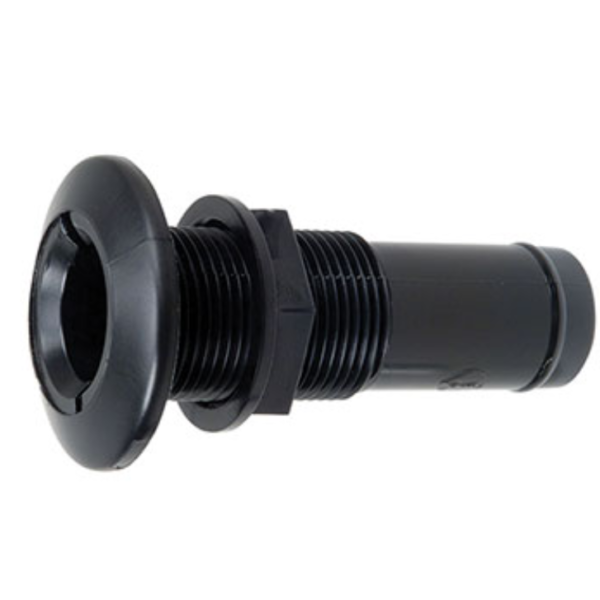

This broad-flange molded-polymer thru-hull provides a clean hose connection through a hull or structure for above-waterline drains and discharges. The black finish suits dark hulls, transoms and interior installations while the broad flange spreads the bedding surface around the opening.

Product Details

• Accepts 29 mm (1-1/8 in.) hose on the integral hose-barb connection.
• Requires a 33.3 mm mounting hole and accommodates hull thicknesses up to 38.1 mm.
• Broad exterior flange measures 57.2 mm in diameter.
• Molded black polymer construction is lightweight and corrosion resistant.
• Compatible replacement flanged lock nuts are available from the PERKO Figure 0326 family.
• Install with a suitable marine bedding compound and secure the hose with correctly sized marine clamps.
• PERKO and ABYC guidance state that hose-connected polymer thru-hulls are not recommended for use below the waterline.

What’s in the Box

• One black polymer thru-hull connection
• One flanged mounting nut

Specifications

• PERKO Manufacturer Part Number: 032806ABLK
• PERKO Figure: 0328
• Component Type: Broad-flange thru-hull connection for hose
• Material: Molded polymer
• Colour: Black
• Hose Size: 29 mm (1-1/8 in.)
• Mounting Hole Diameter: 33.3 mm
• Maximum Hull Thickness: 38.1 mm
• Flange Outside Diameter: 57.2 mm
• Recommended Location: Above the waterline
• Compatible Spare Nut: PERKO Figure 0326
