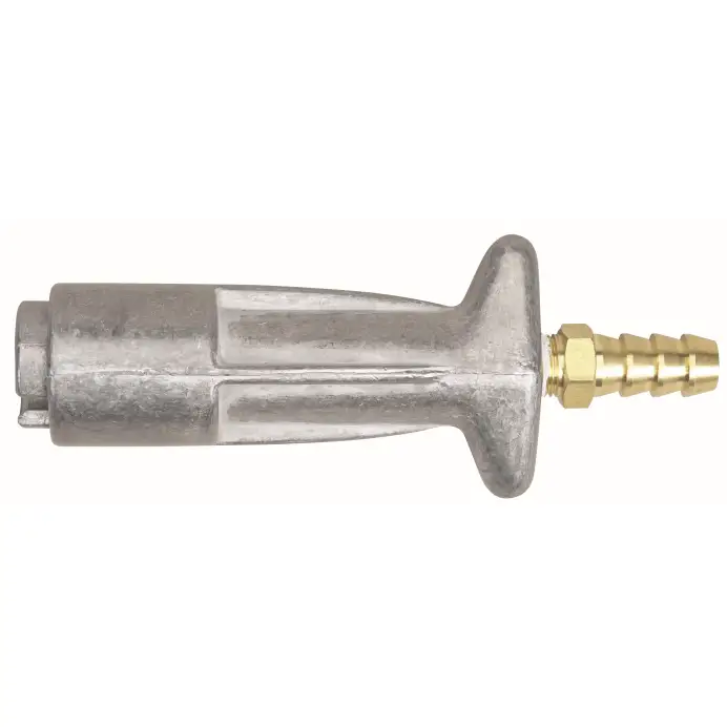

MOELLER Mercury 3/8″ Barb Female Engine/Tank Fuel Connector, Bayonet Style – 033418-10

Description

MOELLER Mercury 3/8″ Barb Female Engine/Tank Fuel Connector, Bayonet Style – 033418-10

The Moeller 033418-10 is an OEM-compliant female bayonet-style fuel connector for compatible Mercury and Mariner outboard fuel systems. It can be used on the engine or fuel-tank end of a fuel-line assembly, depending on the existing male fitting.

• Designed for compatible Mercury and Mariner outboard fuel systems
• Female bayonet-style connection provides secure twist-lock engagement
• Fits 3/8″ inside-diameter marine fuel hose
• Die-cast construction provides durability in marine applications
• Includes connection components for straight or 90-degree hose routing

The connector allows a replacement or custom fuel-line assembly to be matched to an existing Mercury-style male engine or tank fitting. Its 3/8″ hose-barb connection provides a secure attachment point for compatible marine fuel hose when installed with a properly sized fuel-hose clamp.

Confirm the vessel’s existing connector profile and fuel-hose diameter before installation. Secure all hose connections with marine-grade clamps and inspect the completed fuel system carefully for leaks before operating the engine.

Specifications:

• Manufacturer: Moeller Marine
• Part Number: 033418-10
• Reference Number: 09476
• Product Type: Female engine/tank fuel connector
• Engine Compatibility: Compatible Mercury and Mariner outboards
• Connector Style: Female bayonet twist-lock
• Fuel-Hose Connection: 3/8″ hose barb
• Internal Adapter Thread: 1/4″ NPT
• Material: Die-cast metal
• Included Adapter: 90-degree hose-barb elbow
• Replacement for Mercury: 22831A3 and 22831Q3
• Cross Reference: Tempo 220035; Scepter 07495
• UPC: 739729418109
