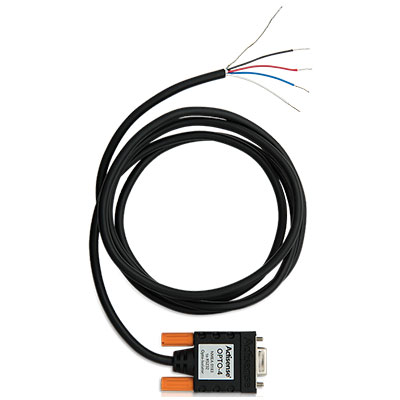

ACTISENSE OPTO-4 NMEA 0183 to RS232 Serial Opto-Isolator – OPTO-4

Description

ACTISENSE OPTO-4 NMEA 0183 to RS232 Serial Opto-Isolator – OPTO-4

The Actisense OPTO-4 provides a compact and protected way to connect an NMEA 0183 or RS422 system to a computer or device with a standard 9-pin RS232 serial port. Galvanic opto-isolation protects the receiving equipment from ground-loop currents, while output spike suppression adds protection to the transmitting side.

• One optically isolated RS422/NMEA 0183 input for protected serial data reception
• RS232 DB9 female connection for compatible computers and serial equipment
• Port-powered design eliminates the need for a separate power supply
• Supports serial data rates up to 115,200 baud
• Shielded cable and rugged over-moulded enclosure suit demanding marine installations

The OPTO-4 is ideal for equipment that still provides a physical RS232 port. For computers that only provide USB, or for applications requiring full bi-directional USB isolation, consider the Actisense USG-2.

Specifications:

• Part number: OPTO-4
• Input: One OPTO-isolated RS422/NMEA 0183 input
• Output/interface: RS232 through DB9 female connector
• Maximum baud rate: 115,200 baud
• Power: Powered from the RS232 port
• Protection: Galvanic opto-isolation and output spike suppression
• Construction: Shielded cable with water-resistant over-moulded case
• Manufacturer warranty: 5 years
