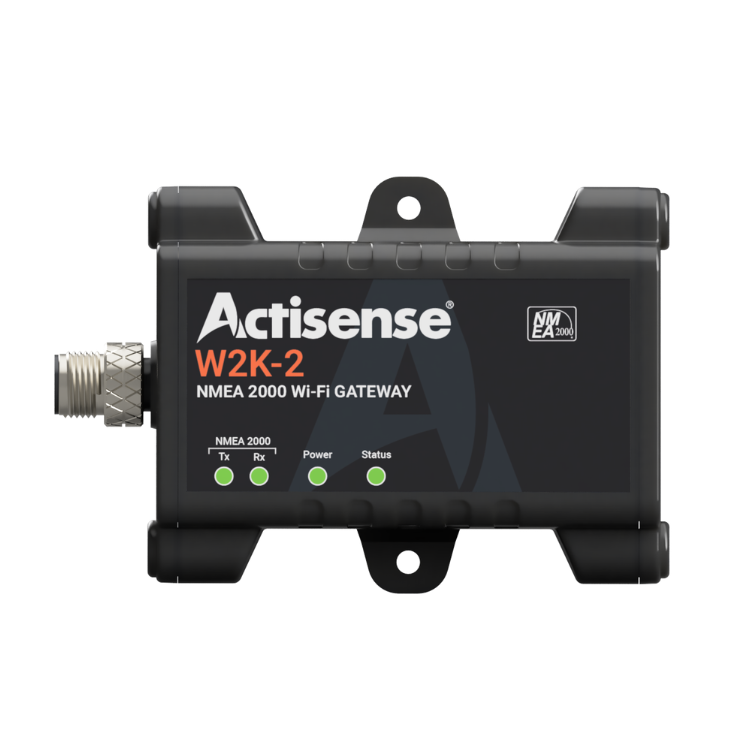

ACTISENSE W2K-2 NMEA 2000 to Wi-Fi Gateway and Data Logger – W2K-2

Description

ACTISENSE W2K-2 NMEA 2000 to Wi-Fi Gateway and Data Logger – W2K-2

The Actisense W2K-2 brings NMEA 2000 vessel data to phones, tablets and computers over Wi-Fi. It can convert supported NMEA 2000 messages to and from NMEA 0183 data streams, operate as an access point and network client, and record network traffic for voyage analysis or troubleshooting.

• Streams NMEA 2000 data over Wi-Fi and converts supported data to/from NMEA 0183
• Supports TCP and UDP through as many as three independently configured data servers
• Records voyage and network data to an optional microSD card up to 128 GB
• Acts as a Wi-Fi access point and client at the same time for flexible onboard networking
• Includes Actisense-i diagnostics, network-voltage reporting and status LEDs in an IP67 enclosure

The W2K-2 is well suited to navigation apps, secondary wireless displays, voyage logging and NMEA 2000 network diagnostics. App compatibility depends on the data protocol and sentence/PGN support configured in both the gateway and the receiving software.

Specifications:

• Part number: W2K-2
• Primary function: NMEA 2000 to Wi-Fi gateway, NMEA 0183 converter and data logger
• NMEA 2000 supply: 9 to 30 V DC
• Network load: 2 LEN
• NMEA 2000 connector: M12 male, A-coded
• Wi-Fi: IEEE 802.11 b/g/n, up to 150 Mbps
• Wireless range: Approximately 30 m in open space
• Network protocols: TCP and UDP
• Data logging: Optional microSD card up to 128 GB
• Device dimensions: 126 x 73 x 24 mm
• Device weight: 112 g
• Environmental protection: IP67
• Operating temperature: -25°C to +70°C
• Certifications: NMEA 2000 certified; IEC 61162-1 and IEC 61162-2 compliant
