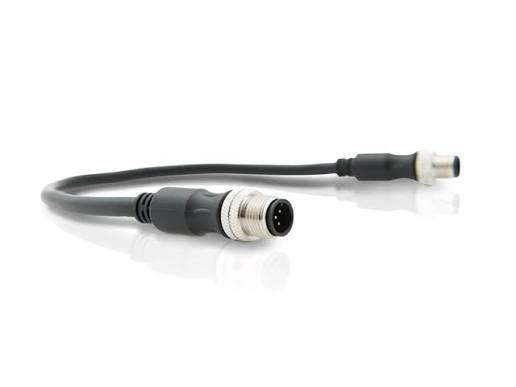

ACTISENSE NMEA 2000 Male-to-Male Gender Changer Cable, 0.25 m – A2K-GCM-0M25
The Actisense A2K-GCM-0M25 is a short NMEA 2000 Micro gender changer cable with male-to-male connectors. It provides a clean, fully cabled solution when two network components present the same connector gender and cannot be mated directly.
- Male-to-Male connector arrangement for correcting NMEA 2000 Micro connection gender
- Compact 0.25 m length minimizes added cable and keeps installations tidy
- Uses Actisense UL-certified shielded Micro/Lite cable
- Nickel-plated coupling hardware and gold-plated contacts support reliable marine connections
- NMEA 2000 approved and IP67 protected when correctly mated
Use the gender changer only where the connector arrangement requires it; it does not replace a T-piece, terminator or power connection. Secure both couplings fully and protect any unused network ports with the correct cap.
Specifications:
- Part number: A2K-GCM-0M25
- Connector arrangement: Male-to-Male
- Length: 0.25 m
- Connector standard: M12 A-coded / NMEA 2000 Micro
- Rated current: 3 A
- Rated voltage: 60 V DC
- Cable outside diameter: 6.85 mm nominal
- Product weight: 50 g
- Environmental protection: IP67 when mated
- Operating temperature: -25°C to +70°C
- Manufacturer warranty: 5 years
