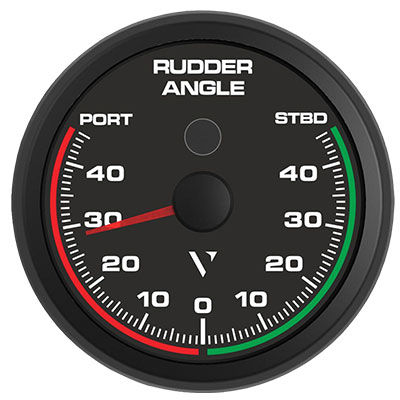

VERATRON OceanLink Professional Rudder Angle Indicator 85mm Black – B00067401

Description

VERATRON OceanLink Professional Rudder Angle Indicator 85mm Black – B00067401

Veratron’s OceanLink Professional Rudder Angle Indicator is built for commercial and serious recreational helms that need a large, highly visible rudder display and flexible integration options. It accepts common analog rudder senders while also providing NMEA 0183 connectivity for compatible autopilot and repeater installations.

• Large 85 mm instrument format with a wide 270-degree dial for clear rudder-position indication.
• Accepts both 3-180 ohm resistive rudder senders and 0-5V sensor signals.
• Integrated NMEA 0183 transceiver can repeat rudder-angle data to compatible equipment and additional gauges.
• Red illumination, IPX7 protection and a wide -30°C to +80°C operating range suit exposed helm environments.
• Infrared setup control allows calibration without adding a conventional front-panel push button.

This gauge is a practical fit for new professional helm panels or upgrades where an analog sender must feed both a dedicated pointer-style indicator and networked navigation or steering equipment.

Specifications:

• Manufacturer: Veratron
• Series: OceanLink Professional
• Article Number: B00067401
• Function: Rudder angle
• Gauge Size / Cutout: 85 mm
• Dial Range: -45° to +45°
• Input Signals: 3-180 ohm resistive and 0-5V
• Data Interface: NMEA 0183
• System Voltage: 12V / 24V DC
• Protection: IPX7
• Operating Temperature: -30°C to +80°C
• Face Colour: Black
