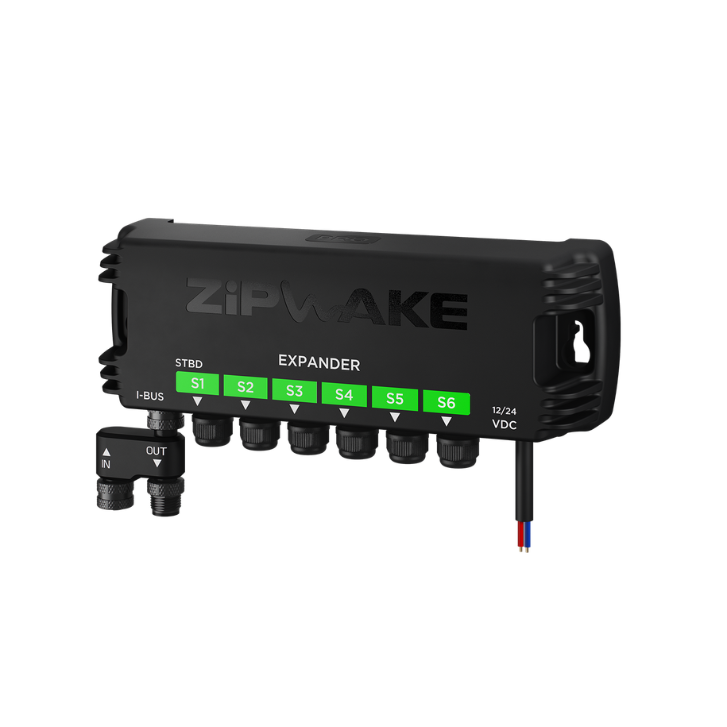

ZIPWAKE DU-EX PRO Distribution Expansion Unit with 4 m Power Cable – 2022034

Description

ZIPWAKE DU-EX PRO Distribution Expansion Unit with 4m Power Cable – 2022034

The DU-EX PRO expands a Zipwake PRO system when the installation needs more interceptor connections than the primary distribution unit can provide. It uses the same rugged 36V boosted-power architecture and is designed for engine-room installation with integrated protection and marine-rated environmental resistance.

• Expands a Zipwake PRO installation to support additional interceptor/servo connections.
• Accepts 12-32V DC input and supplies the PRO servo architecture through the system distribution network.
• Six interceptor connections plus I-BUS output support flexible multi-interceptor system layouts.
• Integrated automatic protection helps safeguard the distribution circuit without a user-resettable fuse element.
• IP67, oil-resistant and SAE J1171 ignition-protected construction suits demanding machinery-space installations.

Use the DU-EX PRO when system sizing calls for more interceptor capacity than a single DU PRO can support. Follow Zipwake’s topology, cabling and power-feed requirements so the expansion unit is correctly integrated with the main control or integrator module.

Specifications:

• Manufacturer: Zipwake
• Model: DU-EX PRO
• Part Number: 2022034
• Supply Voltage: 12-32V DC
• Power Consumption: 10W max
• Power Cable: 4 m, 12 AWG
• Interceptor Connections: 6
• Network: I-BUS OUT
• Protection: Integrated automatic fuse / circuit protection
• Waterproof Rating: IP67 with cables/caps installed
• Ignition Protection: SAE J1171
• Operating Temperature: -20°C to +85°C
• Weight: 1.1 kg including power cable
