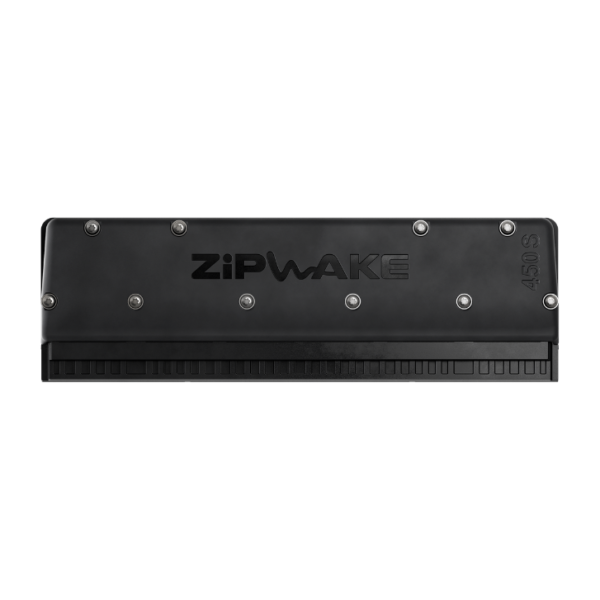

ZIPWAKE IT450-S PRO Straight Interceptor with 3 m Cable – 2021233

Description

ZIPWAKE IT450-S PRO Straight Interceptor with 3m Cable – 2021233

The Zipwake IT450-S PRO is a Series S PRO interceptor for high-speed automatic trim and motion-control installations. Its straight geometry is intended for the corresponding transom location or hull shape, while the fast electric servo drives a 30 mm blade stroke for responsive pitch and roll corrections.

• 450 mm Series S PRO interceptor in straight configuration for model-specific transom installation.
• Fast 30 mm blade stroke at up to 100 mm/s supports rapid trim and roll corrections.
• Rated by Zipwake for vessels operating up to 60 knots when correctly selected and installed.
• IP68-rated interceptor/servo architecture is designed for submerged marine service.
• Supplied with a 3 m PUR cable and cable cover; cable can be extended within Zipwake system limits.

This is an individual interceptor component for the Zipwake PRO ecosystem, not a complete standalone trim system. Match port/starboard, chine, V-shaped, intermediate or straight geometry to the vessel and existing system before ordering.

Specifications:

• Manufacturer: Zipwake
• Model: IT450-S PRO
• Part Number: 2021233
• Series: Series S PRO
• Geometry: Straight
• Nominal Length: 450 mm
• Product Weight: 2.8 kg
• Servo: SU-S PRO
• Maximum Boat Speed: 60 knots
• Blade Stroke: 30 mm
• Blade Rate: 100 mm/s
• Servo Supply: 36V DC
• Maximum Servo Power: 35W
• Waterproof Rating: IP68 to 5 m
• Cable: 3 m PUR, M12 5-pin; cable cover included
