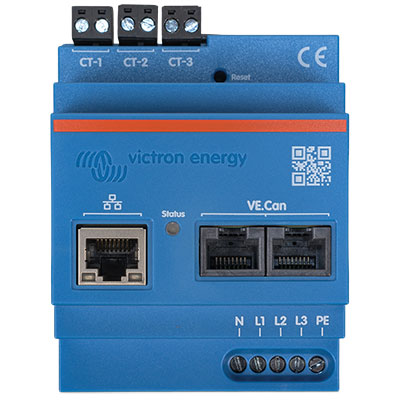

VICTRON ENERGY VM-3P75CT Three-Phase Energy Meter – REL200300100

Description

VICTRON ENERGY VM-3P75CT Three-Phase Energy Meter – REL200300100

The VM-3P75CT is a compact three-phase AC energy meter designed for Victron systems that need detailed grid, generator or AC-load measurement. Included current transformers simplify installation around conductors, while VE.Can and Ethernet communication give GX systems fast access to voltage, current, power and energy data.

• Measures three-phase AC systems using direct voltage connections and included 75A current transformers.
• Two VE.Can RJ45 ports allow straightforward integration with compatible Victron GX systems.
• Ethernet RJ45 connection supports Modbus UDP for network-based data access.
• Fast 100 ms refresh rate supports responsive system monitoring and control applications.
• Self-powered from L1-N, reducing the need for a separate low-voltage power supply.

The VM-3P75CT is particularly useful in larger vessel, generator, shore-power and ESS-style installations where three-phase AC behaviour needs to be visible inside the broader Victron monitoring ecosystem.

Specifications:

• Manufacturer: Victron Energy
• Model: VM-3P75CT
• Part Number: REL200300100
• Voltage Input L-N: 85-265 VAC
• Voltage Input L-L: 150-460 VAC
• Frequency: 50/60 Hz
• Current Measurement: 3 included 75A current transformers
• VE.Can: 2 x RJ45 ports; terminators included
• Ethernet: 1 x RJ45, Modbus UDP
• Refresh Rate: 100 ms
• Protection: IP20; indoor installation
• Dimensions: 90 x 71 x 59 mm
• Weight: 370 g including packaging
