MOELLER 34 Gallon Permanent Below-Deck Marine Fuel Tank – 032534

Description

MOELLER 34 Gallon Permanent Below-Deck Marine Fuel Tank – 032534

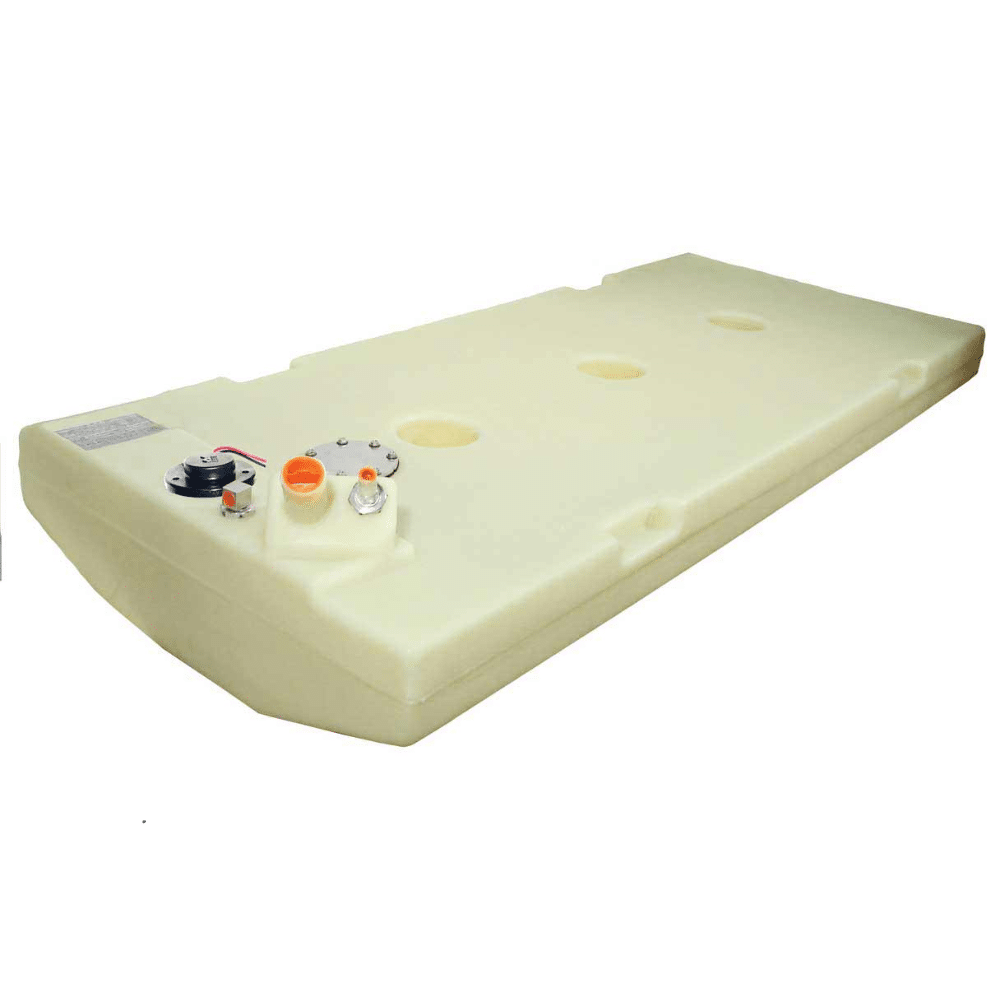

The Moeller 032534 is a permanent below-deck belly-style marine fuel tank designed for gasoline or diesel fuel systems. Rotationally moulded from durable cross-linked polyethylene, it resists corrosion, pitting and the damaging effects commonly associated with metal marine fuel tanks.

The low-profile tank shell measures approximately 59.88″ L x 25.75″ W x 7.19″ H. Allowing for the raised fill neck and installed fittings, the maximum overall height is approximately 11.06″. Moeller’s published overall product dimensions are approximately 60.25″ L x 26.50″ W x 11.00″ H.

• Permanent belly-style fuel tank for below-deck marine installations
• Cross-linked polyethylene construction resists corrosion and pitting
• Suitable for properly configured gasoline or diesel fuel systems
• Includes an installed electric fuel-level sender for standard marine gauges
• Machined 3/8″ fuel-withdrawal fitting rotates 360° for easier hose routing
• Moulded-in fill, vent and withdrawal fittings provide secure connections
• Integrated hold-down grooves simplify installation and tank restraint

Installation Note: Moeller specifies that the installation space must allow approximately 3% tank expansion in all directions. Confirm all dimensions, fitting positions, ventilation requirements and applicable marine fuel-system regulations before installation. The Moeller 000210-4 bracket tie-down kit or a suitable custom restraint system is required and is sold separately.

What’s in the Box

• Moeller permanent below-deck fuel tank
• Installed electric fuel-level sending unit
• Installed fill, vent and fuel-withdrawal fittings

Specifications

• Manufacturer: Moeller Marine
• Manufacturer Part Number: 032534
• Product Designation: 34 Gallon Permanent Below-Deck Fuel Tank
• Manufacturer-Published Capacity: 32 US gallons / approximately 121 L
• Tank Type: Permanent below-deck belly tank
• Material: Cross-linked polyethylene
• Fuel Compatibility: Gasoline or diesel
• Tank Shell Dimensions: Approximately 59.88″ L x 25.75″ W x 7.19″ H
• Maximum Overall Height With Fittings: Approximately 11.06″
• Published Overall Dimensions: Approximately 60.25″ L x 26.50″ W x 11.00″ H
• Fuel Withdrawal Connection: 3/8″ NPT rotating fitting
• Vent Connection: 5/8″ hose barb
• Fill Neck: 1.50″ diameter
• Fuel Sender: Electric marine fuel-level sender
• Tank Weight: Approximately 27 lb
• UPC: 739729325346
