MAXWELL VWC1500 Vertical Chain-Only Windlass with Capstan 12V (5/16″ Chain) – VWC1500-12V105

Description

MAXWELL VWC1500 Vertical Chain-Only Windlass with Capstan 12V (5/16″ Chain) – VWC1500-12V105

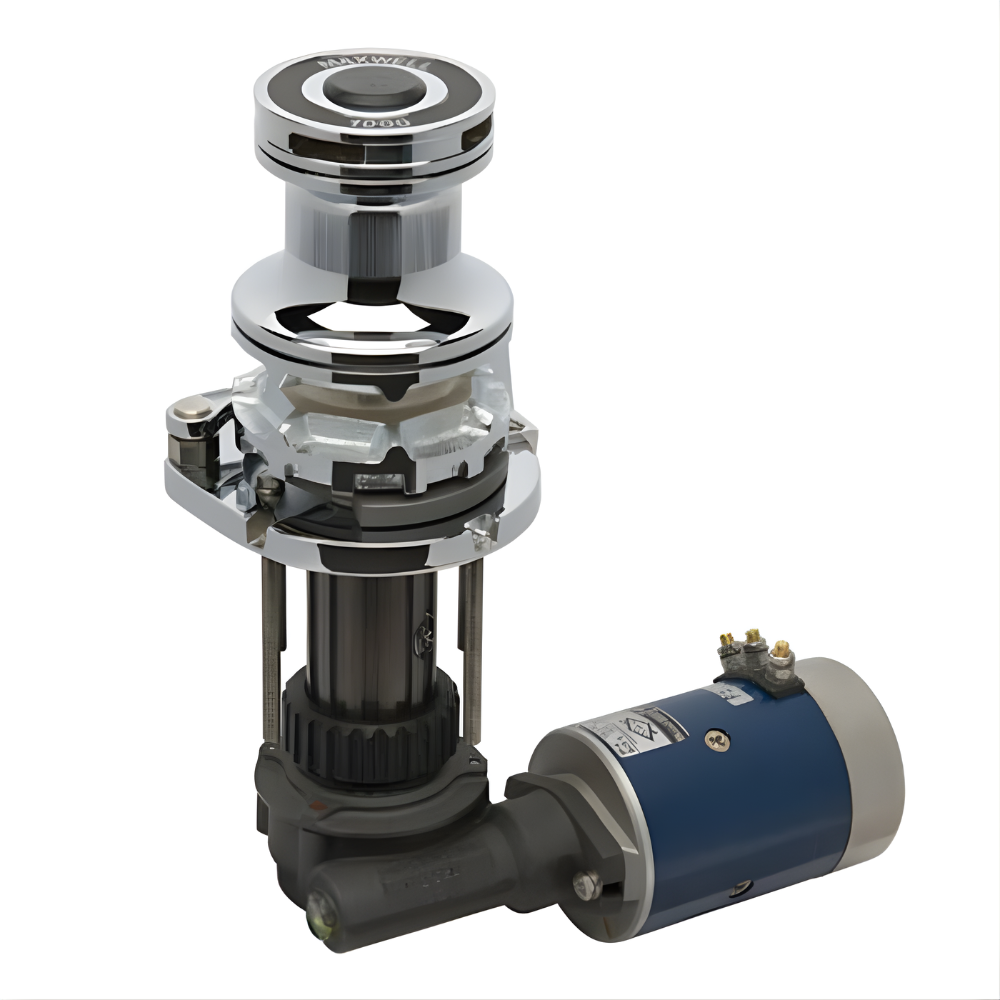

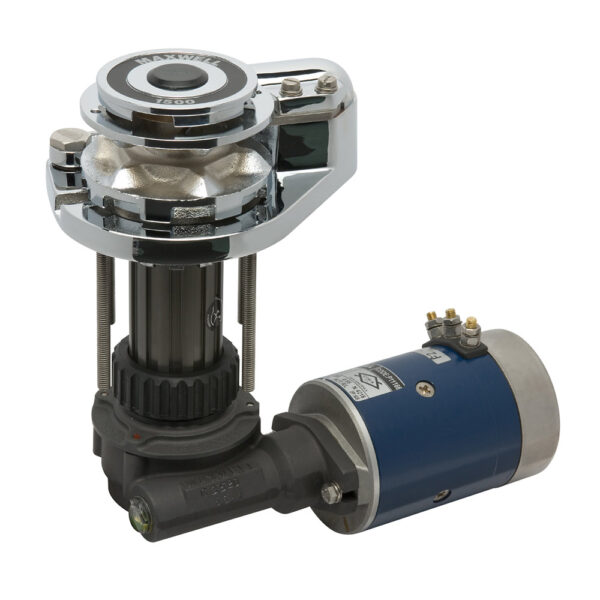

The MAXWELL VWC1500 is a vertical, chain-only electric windlass equipped with an independent capstan for retrieving a secondary rope and/or chain rode or for assisting with docking procedures. This configuration is supplied with the V105 chainwheel, matched for reliable handling of 5/16″ (8 mm) short-link anchor chain.

• Configured for 5/16″ (8 mm) short-link anchor chain
• Independent capstan for secondary rode handling or docking assistance
• Vertical design provides increased chain wrap for positive chainwheel engagement
• Heavy-duty electric motor designed for continuous marine service
• Cone-type clutch and brake allow controlled manual free-fall anchor deployment

The vertical shaft configuration positions the motor and gearbox below deck, improving weight distribution while maximizing chain control at the chainwheel. The independent capstan operates separately from the chainwheel, allowing controlled rope handling without disengaging the primary anchor system. Manufactured to MAXWELL engineering standards, the VWC1500 must be installed in conjunction with a chain stopper or snubbing device to remove load from the windlass while anchored or underway.

Technical Specifications

• Brand: Maxwell
• Model: VWC1500
• Part Number / SKU: VWC1500-12V105
• Voltage: 12 V DC
• Configuration: Vertical windlass with independent capstan
• Primary Rode Type: Chain only
• Compatible Chain Size: 5/16″ (8 mm) short-link chain
• Chainwheel: V105 (matched to 5/16″ chain)

Performance

• Maximum Pull / Lift: 850 kg (1,870 lbs)
• Static Holding Load: 1,500 kg (3,300 lbs)
• Chain Speed (normal working load): Approx. 18 m/min (60 ft/min)

Electrical Specifications

• Motor Power: 1,200 W
• Power Supply: 12 V DC
• Net Weight (DC version): Approx. 24 kg (52 lbs)

Construction & Mechanical Features

• Automatic chainwheel operation for 5/16″ short-link chain

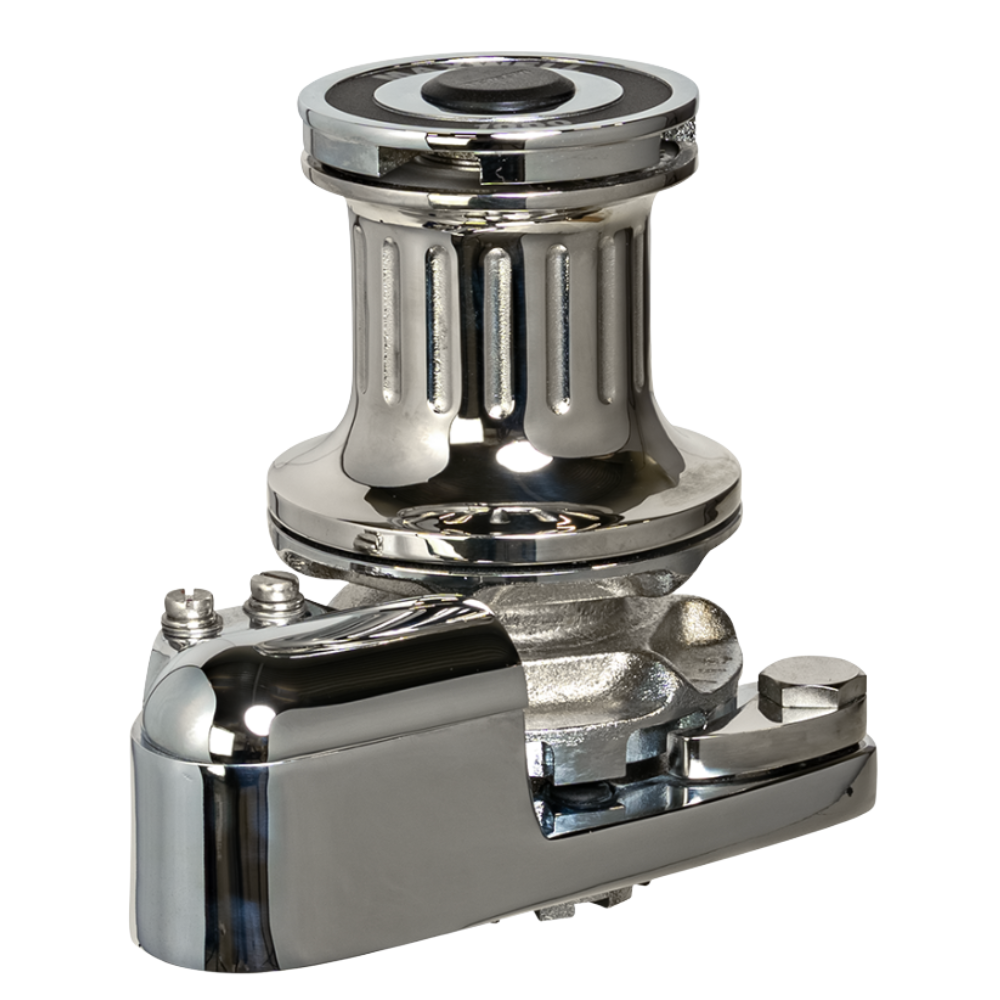

• Independent stainless steel capstan for rope handling and docking assistance
• Cone-type clutch and brake for smooth engagement and manual free-fall anchoring
• Hard-anodized aluminum gearbox for corrosion resistance
• Marine-grade stainless steel and chromed bronze above-deck components
• Modular design for simplified installation and servicing

Standard Equipment

• Chainwheel to suit 5/16″ (8 mm) short-link chain
• Circuit breaker/isolator panel
• Up/down remote control panel
• Footswitch (x2)
• Emergency crank handle

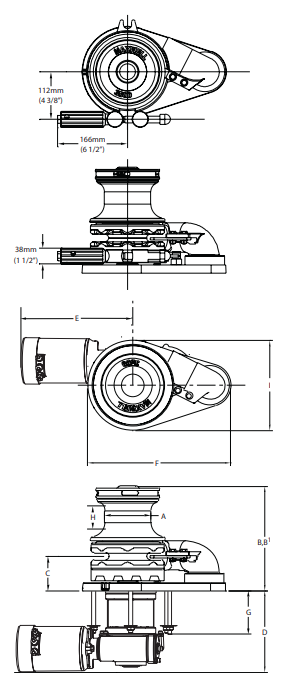

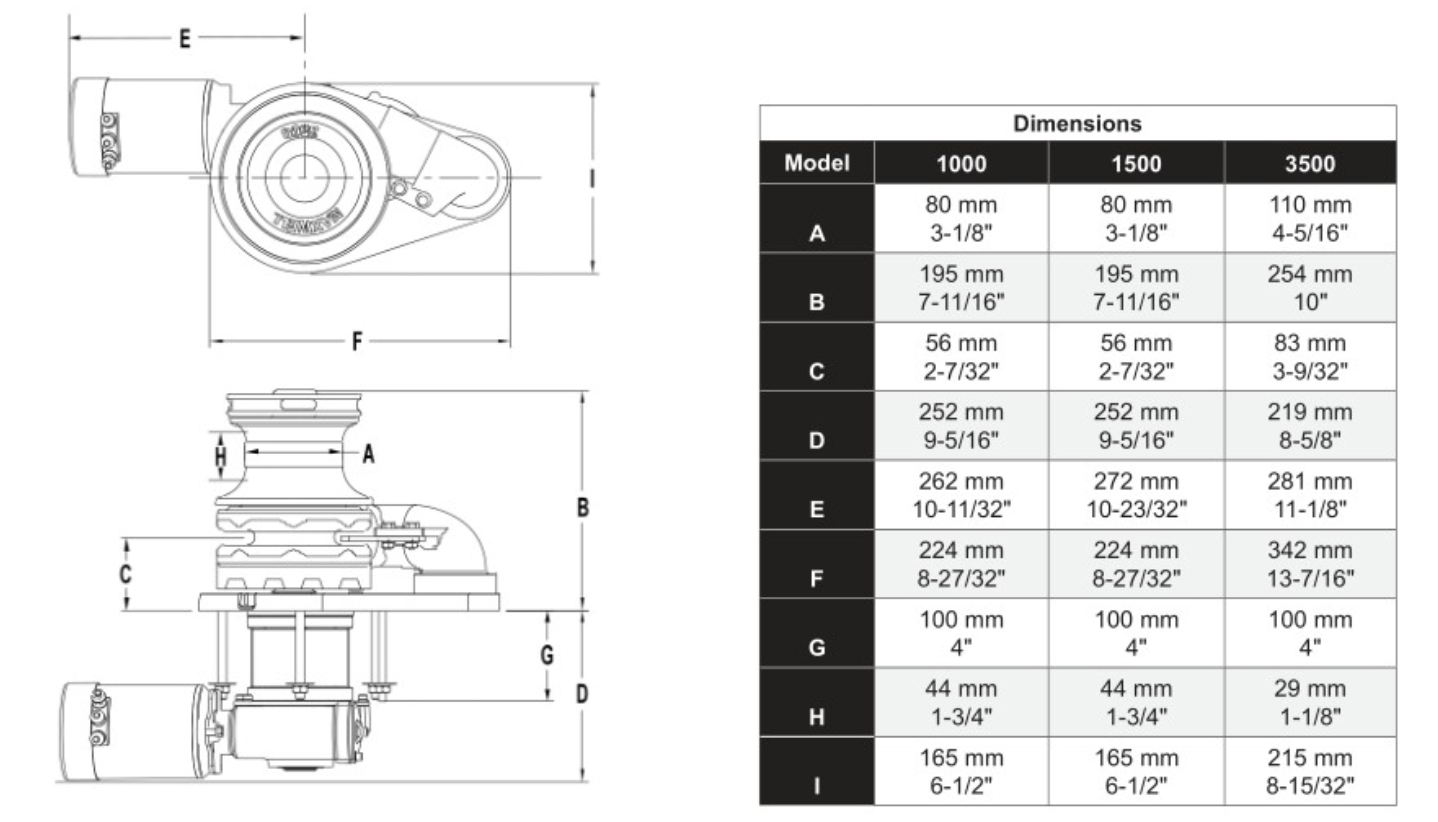

Dimensional Data – VWC1500 (mm / inches)

Installation Notes

Maxwell specifies that all windlasses must be used with a chain stopper or alternative snubbing device to remove anchoring loads from the windlass. Proper matching of 5/16″ short-link chain to the supplied chainwheel is critical for smooth, jam-free operation.

Documents

• Owner’s Manual
• Maxwell Windlass Selection Chart
