LENCO 101 XD Extreme Duty Trim Tab Actuator, 12V, 2-1/4″ Stroke, 3/8″ Hardware – 15056-001

Description

LENCO 101 XD Extreme Duty Trim Tab Actuator, 12V, 2-1/4" Stroke, 3/8" Hardware – 15056-001 is the 3/8 in mounting-hole version of LENCO’s 101 XD actuator for high-load trim tab systems. It shares the same 2-1/4 in stroke and compact 11-3/8 in retracted length as the 5/16 in model, but is configured for installations requiring 3/8 in attachment hardware.

Key Features

• 101 XD Extreme Duty design for demanding trim-tab installations
• 2-1/4 in (57.2 mm) stroke
• 12V DC operation
• 3/8 in top and lower attachment holes
• 6 ft (1.8 m) cable with waterproof Deutsch connector
• Self-locking electric ball-screw drive with no hydraulic fluid circuit

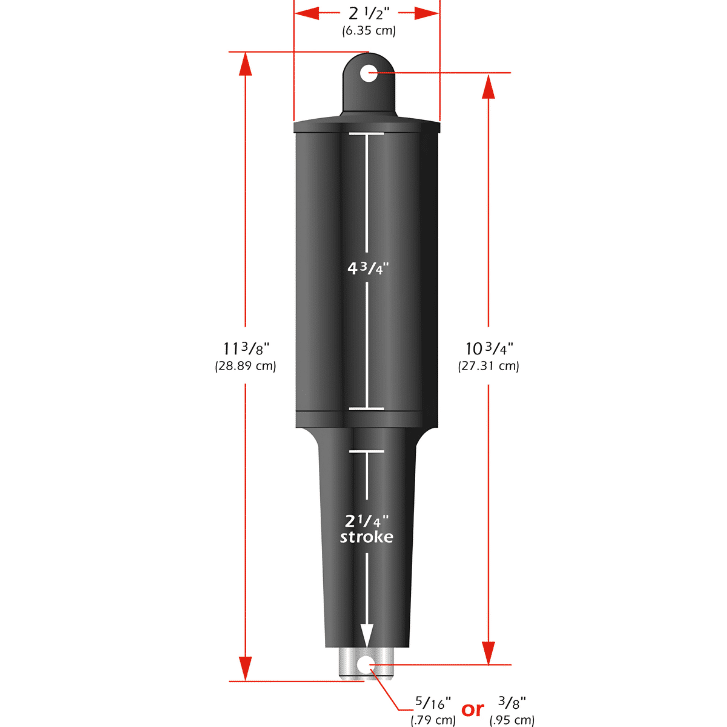

Specifications

• Part Number: 15056-001
• Actuator Family: 101 XD / XD-7 Extreme Duty
• Voltage: 12V DC
• Stroke: 2-1/4 in (5.72 cm)
• Retracted / Tip-to-Tip Length: 11-3/8 in (28.9 cm)
• Centre-to-Centre: approx. 10-3/4 in (27.3 cm)
• Top Mount Hole: 3/8 in
• Lower Mount Hole: 3/8 in
• Cable: 6 ft (1.8 m)
• Connector: Waterproof Deutsch
• Typical Applications: HD, XD, High Performance and Super Strong trim tabs

What’s in the Box

• 101 XD 12V actuator
• 6 ft (1.8 m) cable with Deutsch connector
• 3/8 in mounting hardware
