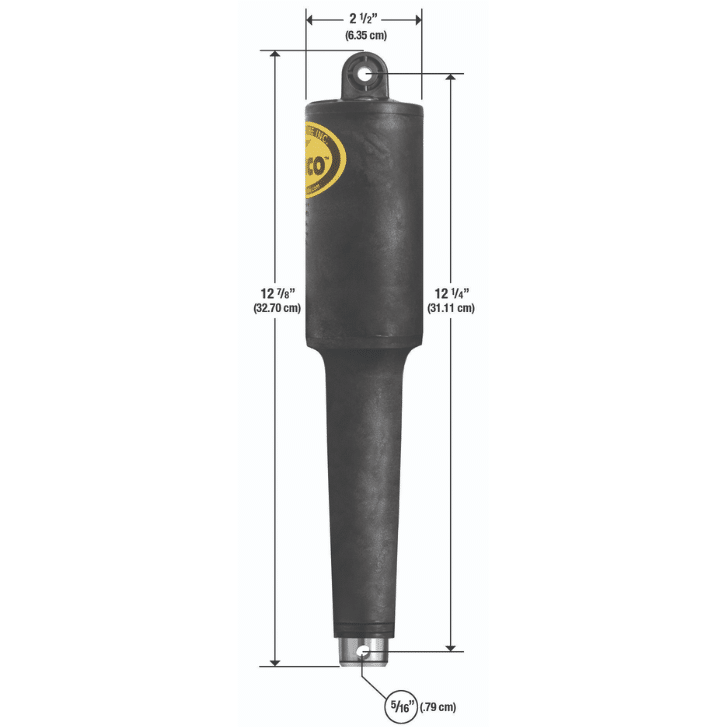

LENCO 102 HD Trim Tab Actuator, 12V, 4-1/4″ Stroke, 5/16″ Hardware – 15060-001

Description

LENCO 102 HD Trim Tab Actuator, 12V, 4-1/4" Stroke, 5/16" Hardware – 15060-001 is the 12V 102 HD long-stroke actuator LENCO specifies for trolling-tab systems sold after 2000 and certain OEM installations. It provides 4-1/4 in of travel in a shorter approximately 13 in body than the legacy 102 Standard actuator, making correct part-number matching essential when replacing an existing ram.

Key Features

• 102 HD actuator for post-2000 trolling-tab and OEM applications
• 4-1/4 in (10.8 cm) stroke
• Approximately 13 in (33 cm) overall tip-to-tip length
• 12V DC operation with 5/16 in mounting hardware
• 6 ft (1.8 m) cable with waterproof Deutsch connector
• High-torque self-locking ball-screw drive

Specifications

• Part Number: 15060-001
• Actuator Family: 102 HD
• Voltage: 12V DC
• Stroke: 4-1/4 in (10.8 cm)
• Overall Length: approx. 13 in (33.0 cm) tip-to-tip
• Mounting Hardware: 5/16 in
• Cable: 6 ft (1.8 m)
• Connector: Waterproof Deutsch
• Primary Application: Trolling-tab systems sold after 2000 and selected OEM applications

What’s in the Box

• 102 HD 12V actuator
• 6 ft (1.8 m) cable with Deutsch connector
• 5/16 in mounting hardware
