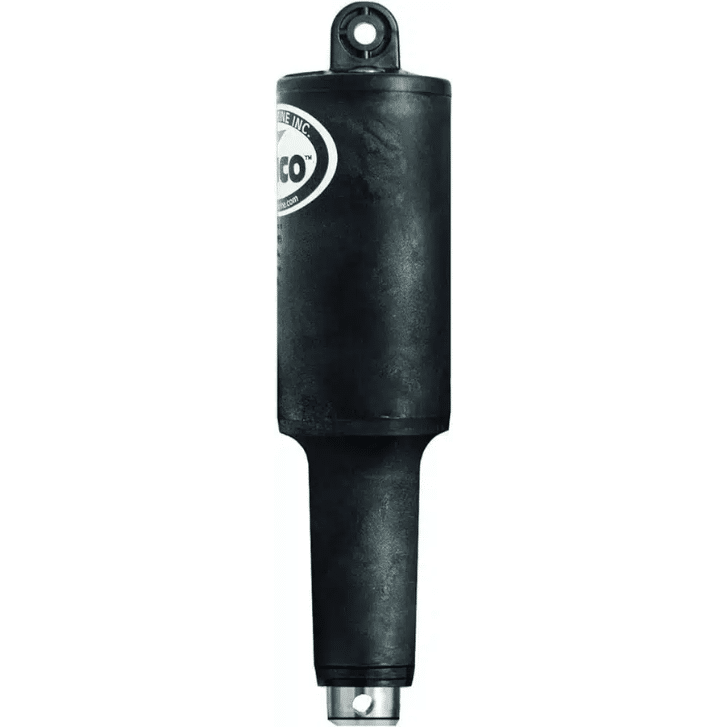

LENCO 101 XDS Short Trim Tab Actuator, 12V, 2-1/4″ Stroke, 5/16″ Hardware – 15057-001

Description

LENCO 101 XDS Short Trim Tab Actuator, 12V, 2-1/4″ Stroke, 5/16″ Hardware – 15057-001 is LENCO’s shortest 101-family 12V trim-tab actuator, developed for OEM-specific installations and transoms where space is especially limited. Despite its compact body, it retains the 2-1/4 in stroke, sealed ball-screw drive and waterproof Deutsch connection used throughout the 100 Series.

Key Features

• Shortest LENCO 101-family actuator for limited-space installations
• 2-1/4 in (57.2 mm) stroke
• Compact 10-7/8 in (27.6 cm) overall tip-to-tip length
• 12V DC electric ball-screw drive
• 5/16 in mounting hardware
• 6 ft (1.8 m) cable with waterproof Deutsch connector

Specifications

• Part Number: 15057-001
• Actuator Family: 101 XDS Short
• Voltage: 12V DC
• Stroke: 2-1/4 in (5.72 cm)
• Overall Length: 10-7/8 in (27.6 cm) tip-to-tip
• Housing Diameter: approx. 2-1/2 in (6.35 cm)
• Mounting Hardware: 5/16 in
• Cable: 6 ft (1.8 m)
• Connector: Waterproof Deutsch
• Application: OEM-specific / limited-space trim-tab installations

What’s in the Box

• 101 XDS Short 12V actuator
• 6 ft (1.8 m) cable with Deutsch connector
• 5/16 in mounting hardware
