LELAND Maximum Inflation Re-Arm Kit K, 24g Automatic, 1/2 in Thread – V90000-84204Z

Description

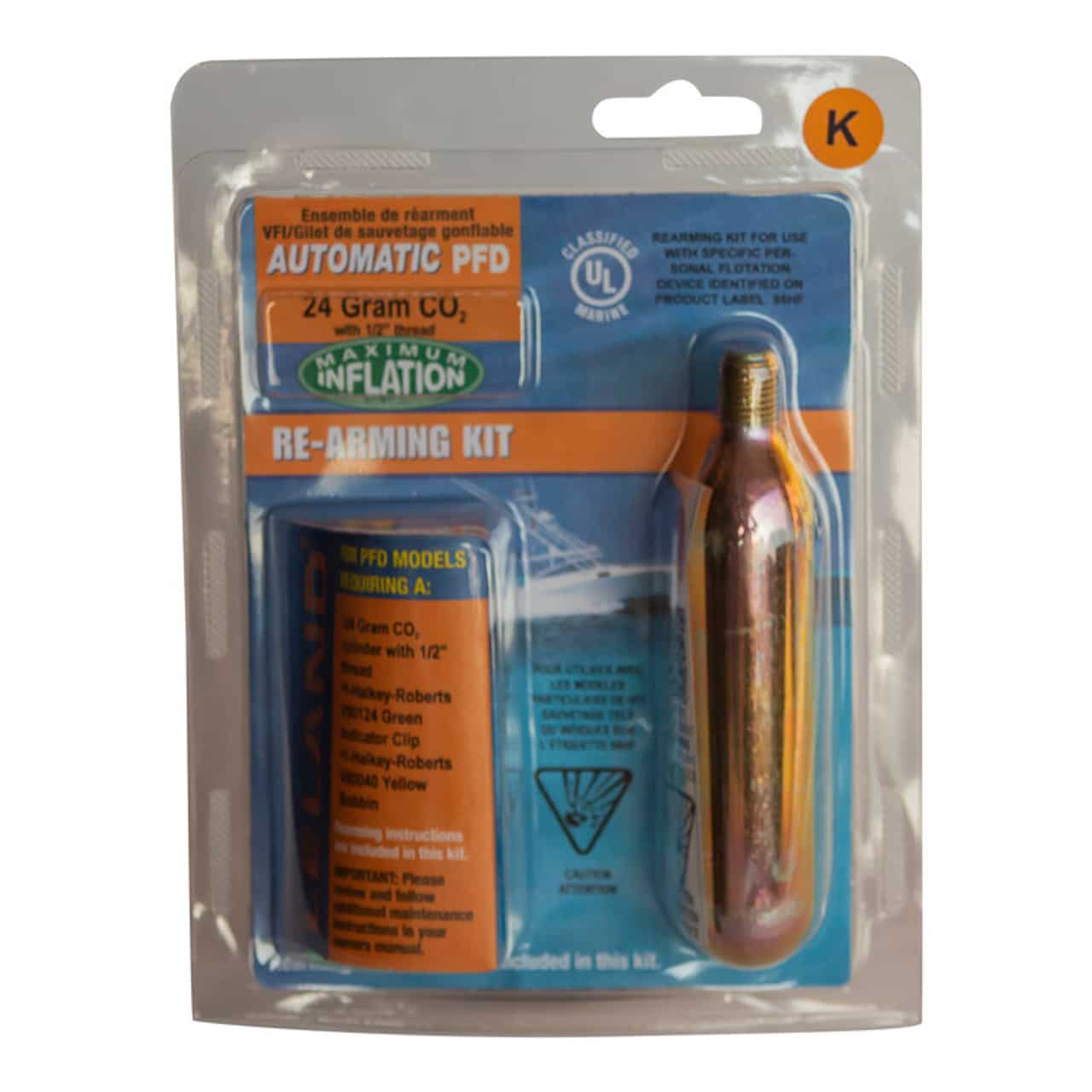

LELAND Maximum Inflation Re-Arm Kit K, 24g Automatic, 1/2 in Thread – V90000-84204Z

The LELAND Maximum Inflation Re-Arm Kit K, 24g Automatic, 1/2 in Thread – V90000-84204Z is a model-specific inflatable-life-jacket service kit designed to replace the expended CO2 and firing components after deployment. Matching the cylinder charge, thread/bayonet interface and inflator family is critical to correct operation.

Use the PFD manufacturer’s label and owner’s manual as the final authority. Re-arm kits are not interchangeable simply because the CO2 gram rating is the same.

Features

• 24g CO2 charge matched to the specified inflator
• Automatic/Manual PFD application
• 1/2 in threaded cylinder/interface
• UL Marine classified where listed for the kit
• Complete service package with model-specific firing/indicator components as supplied

Specifications

• Kit: K
• Part Number: V90000-84204Z
• CO2 Charge: 24g
• Inflator Family: V90000 Series
• Interface: 1/2 in threaded
• Operation: Automatic/Manual
• Included: 24g CO2 cylinder with 1/2 in threads, V90124 green indicator clip, V80040 yellow water-sensing bobbin, Re-arming instructions

Compatibility

• Other listed applications: Airhead SL6F/SL6FA; Bass Pro 3042C; Bluestorm SL6F; Cabela’s/Guardian 3042C/C3042C/SL6F/SL6FA/SP6F/SP6FA; Coleman Stearns 24A13-S21/24ASPT-1; Flowt 40801; Kent/Onyx 3042C/C3042C; NRS OTTO MATIK; West Marine 3042C and other listed V90000 applications

Important Notes

• The CO2 cylinder is single-use once punctured.
• Do not install a kit that is not specifically listed for the PFD/inflator.
• Store pressurized cylinders away from excessive heat and replace corroded or damaged cylinders.
