JABSCO Twist ’n’ Lock Compact Manual Marine Toilet – 29090-5000

Description

JABSCO Twist ’n’ Lock Compact Manual Marine Toilet – 29090-5000

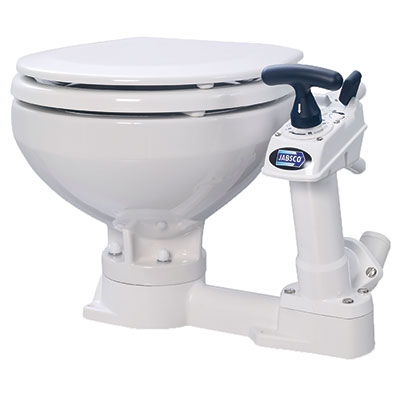

The JABSCO 29090-5000 is a compact manual marine toilet designed for smaller head compartments. Its Twist ’n’ Lock handle secures the piston to help prevent backflow, while the reversible pump can be installed on either side of the bowl for flexible layouts.

• Compact bowl footprint suits space-conscious marine installations
• Twist ’n’ Lock handle locks the piston down to help control backflow
• Self-priming hand pump can be mounted on the left or right side
• Multi-angle discharge elbow simplifies hose routing
• Vitreous-china bowl with white enameled wooden seat and lid

Warning: Installation must follow the supplied instructions, including correct seacock, vented-loop and hose arrangements. Close seacocks when the vessel is unattended and never place foreign material in the toilet.

What’s in the Box

• 1 x Compact vitreous-china toilet bowl
• 1 x Twist ’n’ Lock manual pump and base assembly
• 1 x Compact seat and lid
• Installation hardware and documentation

Specifications

• Part Number: 29090-5000
• Operation: Manual hand pump
• Bowl Size: Compact
• Inlet Connection: 3/4 inch / 19 mm hose
• Discharge Connection: 1-1/2 inch / 38 mm hose
• Approximate Installed Size: 455 mm wide x 425 mm deep x 330–345 mm high
• Pump Mounting: Reversible left or right

Documents

• Data Sheet
