JABSCO Santoprene Diaphragm Service Kit – 18912-3040

Description

JABSCO Santoprene Diaphragm Service Kit – 18912-3040

The JABSCO 18912-3040 is a replacement Santoprene diaphragm kit for compatible JABSCO multi-chamber diaphragm pumps used in onboard water, washdown and baitwell systems. Replacing a worn or damaged diaphragm can restore pumping performance and help correct leakage or loss of prime within the pump head.

• Genuine JABSCO replacement diaphragm service kit
• Santoprene diaphragm material for compatible water-pump applications
• Used when rebuilding a leaking, damaged or low-output pump head
• Suitable for compatible washdown, baitwell and freshwater pump service
• Match the complete part number and pump model before installation

Warning: Confirm the exact pump model and parts breakdown before disassembly. Disconnect electrical power and relieve system pressure before servicing.

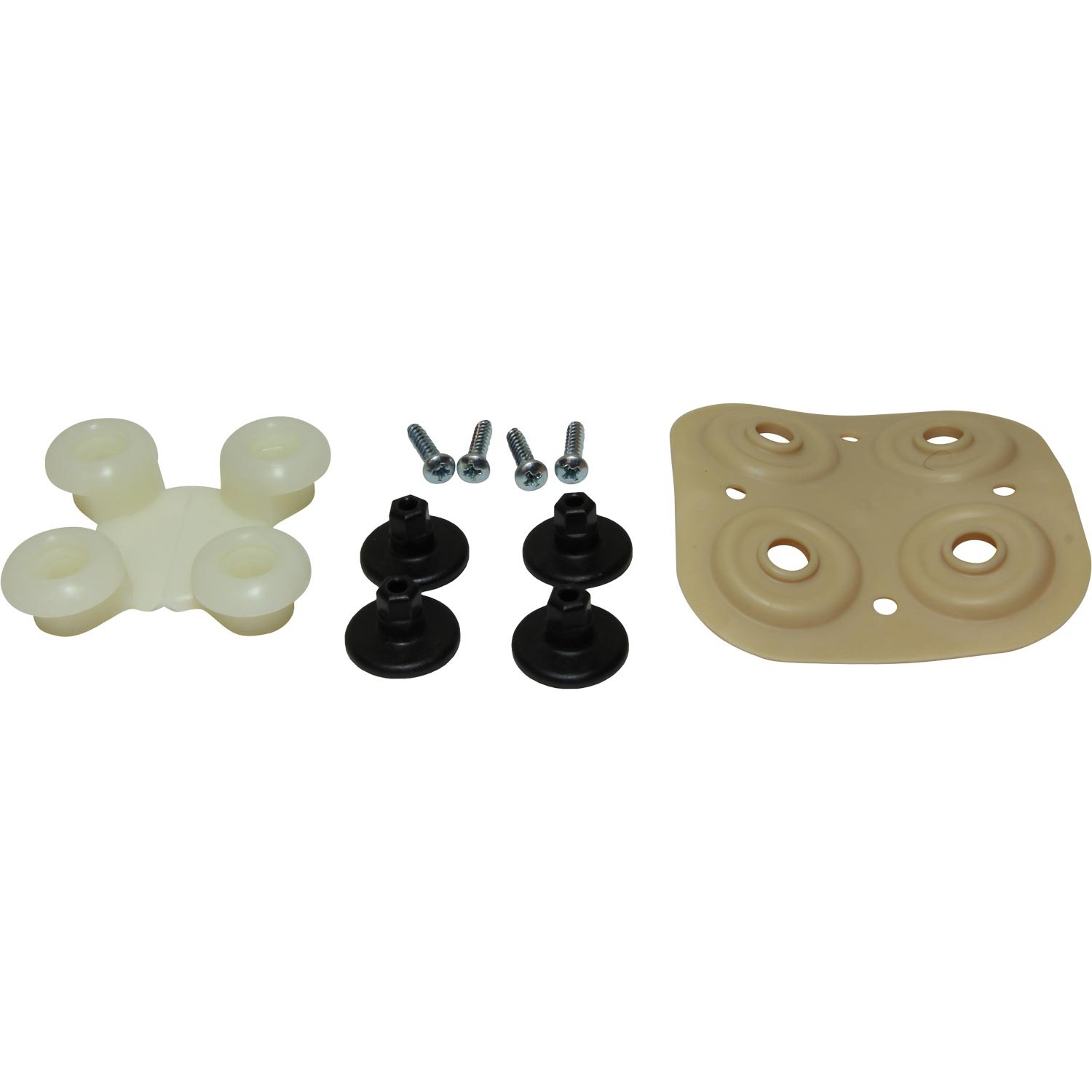

What’s in the Box

• Diaphragm service components supplied in kit 18912-3040

Specifications

• Part Number: 18912-3040
• Component Type: Diaphragm service kit
• Diaphragm Material: Santoprene
• Application: Compatible JABSCO diaphragm water pumps
• Fluid Compatibility: Water-system applications; not intended for oil transfer
