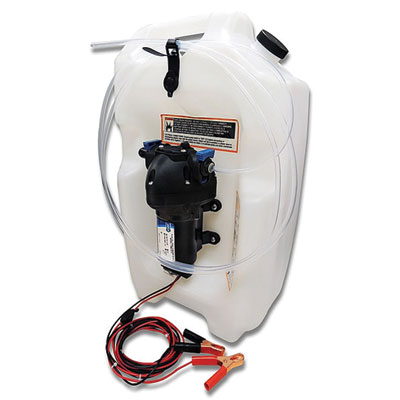

JABSCO Flat-Tank Oil Change System, 12V, 13.2 L – 17860-2012

Description

JABSCO Flat-Tank Oil Change System, 12V, 13.2 L – 17860-2012

The JABSCO 17860-2012 provides a clean, self-contained way to remove engine oil through a dipstick tube. Its stable flat tank stores easily, while the oil-resistant diaphragm pump transfers warm used oil directly into the sealed receiver.

• 13.2 L (3.5 US gal) maximum tank capacity
• 12V self-priming diaphragm pump can tolerate dry running during normal transfer use
• Oil-resistant Geolast diaphragm and Viton valves
• Includes approximately 2.4 m suction tube and 1.8 m battery lead with alligator clips
• Integrated on/off switch, vent and easy-pour spout simplify operation and emptying

Warning: Run the engine only long enough to warm the oil, then shut it off before extraction. Open the tank vent during pumping. Do not use with gasoline or flammable liquids, and observe correct battery polarity.

What’s in the Box

• 1 x JABSCO flat-tank oil changer
• 1 x 13.2 L receiver tank
• 1 x Suction tube
• 1 x 12V lead with battery clamps

Specifications

• Voltage: 12V DC
• Maximum Current: Approximately 2A
• Recommended Fuse: 5A
• Tank Capacity: 13.2 L / 3.5 US gal maximum
• Suction Tube: Approximately 2.4 m
• Battery Lead: Approximately 1.8 m
• Packed Size: Approximately 50 x 33 x 21 cm
• Packed Weight: Approximately 3.7 kg
