JABSCO 6050 Bronze Flexible-Impeller Utility Pump, 115/230V AC – 6050-0003

Description

JABSCO 6050 Bronze Flexible-Impeller Utility Pump, 115/230V AC – 6050-0003

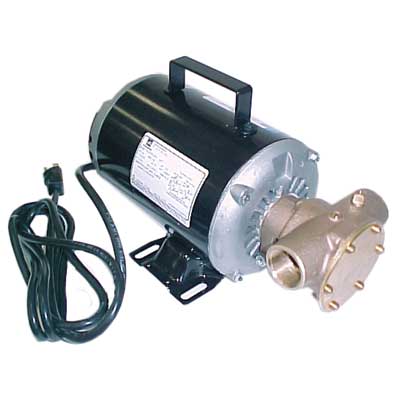

The JABSCO 6050-0003 is a motor-driven bronze utility pump for water transfer, circulation, tank emptying and other compatible liquid-handling duties. A nitrile flexible impeller provides self-priming positive displacement, while the dual-voltage single-phase motor supports fixed installations with either 115V or 230V AC supply.

• Bronze pump head and nitrile impeller for durable utility-pumping service
• 3/4 HP single-phase motor can be wired for 115V or 230V AC
• Self-priming flexible-impeller design can lift water without a foot valve when properly installed
• Approximately 23 GPM output supports rapid transfer and dewatering
• Replaceable impeller, cam, wear surfaces and seals simplify maintenance

Warning: Installation and voltage configuration must be completed by a qualified person in accordance with electrical codes. Do not operate dry or use for gasoline or other flammable liquids. Provide grounding, circuit protection and a guarded installation.

What’s in the Box

• 1 x JABSCO 6050-0003 motor-driven pump assembly
• 1 x installed nitrile flexible impeller
• Pump documentation

Specifications

• Voltage: 115/230V AC, single phase
• Motor power: 3/4 HP
• Motor speed: Approximately 1725 RPM
• Pump type: Bronze flexible-impeller utility pump
• Port size: 1-inch female NPT
• Maximum flow: Approximately 23 GPM (87 L/min)
• Impeller material: Nitrile
• Approximate overall dimensions: 33 L x 30.5 W x 29.2 H cm
• Manufacturer part number: 6050-0003
