HARKEN 40 Self-Tailing Performa Winch — 2 Speed – 40.2STP

Description

HARKEN 40 Self-Tailing Performa Winch — 2 Speed – 40.2STP

The HARKEN 40 Self-Tailing Performa Winch — 2 Speed (40.2STP) is a high-performance winch designed for sailors who demand efficiency and reliability. This winch features sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech lines. Its self-tailing mechanism allows a single crew member to quickly and easily trim or raise sails, making it an essential tool for competitive sailing and cruising alike.

Main Features:

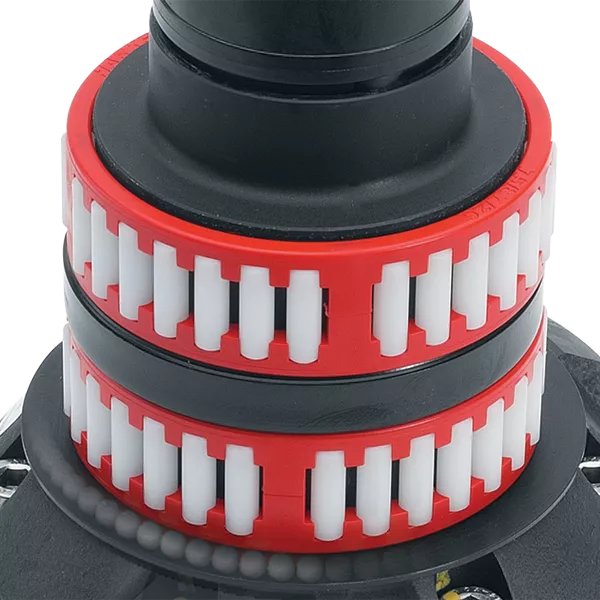

• Sandblasted Drums: Optimized for halyard and sheeting applications with small-diameter, high-tech lines.
• Self-Tailing Mechanism: Allows one crew member to efficiently trim or raise sails.
• Narrow Composite Jaws: Ensure superior holding power on small-diameter lines.
• Two-Speed Operation: Provides versatility and control in various sailing conditions.
• Durable Construction: Built to withstand the harsh marine environment.

Ideal for both competitive sailors and cruising enthusiasts, the HARKEN 40 Self-Tailing Performa Winch offers a combination of advanced features and robust construction. Its two-speed operation and self-tailing mechanism enhance sailing efficiency, while the sandblasted drums and narrow composite jaws ensure optimal performance with modern, high-tech lines. This winch is a reliable choice for those looking to upgrade their sailing equipment.

Specifications:

• Configuration: Self-tailing
• Speed: 2
• Drum Diameter: 80 mm (3 1/8 in)
• Base Diameter: 157 mm (6 3/16 in)
• Height: 175 mm (6 7/8 in)
• Weight: 3.8 kg (8.4 lb)
• Line Entry Height: 82 mm (3 1/4 in)
• Minimum Line Diameter: 8 mm (5/16 in)
• Maximum Line Diameter: 12 mm (1/2 in)
• Fastener Circle: 123 mm (4 7/8 in)
• Number of Fasteners: 5
• Gear Ratio – 1: 2.13
• Gear Ratio – 2: 6.28
• Power Ratio – 1: 13.50
• Power Ratio – 2: 39.90
