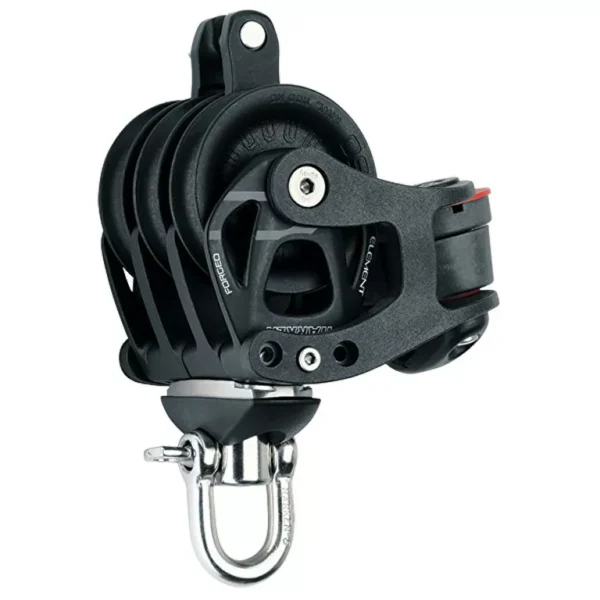

HARKEN 60mm Element Triple Swivel with 150 Cam & Bec – 6275

Description

HARKEN 60mm Element Triple Swivel with 150 Cam & Bec – 6275

HARKEN 60mm Element Triple Swivel with 150 Cam & Bec – 6275 is a Harken Element block that combines robust forged-aluminum sideplates with a durable composite bearing sheave for dependable big-boat line handling at a value-oriented price point.

• Forged aluminum sideplates use compound curves to protect the sheave and carry load efficiently.
• Hardcoat-anodized aluminum resists corrosion in marine service.
• Tough composite journal-bearing sheave promotes long service life.
• Available Element configurations support common sheet, halyard and control-line layouts.
• Harken headpost/shackle designs allow alignment appropriate to the listed configuration.

Triple Swivel with 150 Cam and Becket – 6275 Sheave Diameter: 60 mm (2 3/8 inches) Length: 165 mm (6 1/2 inches) Weight: 710 grams (24.9 ounces) Shackle Pin Diameter: 8 mm (5/16 inch) Maximum Line Diameter: 12 mm (1/2 inch) Maximum Working Load: 816 kg (1799 lb) Breaking Load: 1632 kg (3598 lb)

For best results, confirm the Harken part number and system compatibility before installation, and operate the hardware within Harken’s published line-size and load limits.

Specifications

• Manufacturer: Harken
• Part Number: 6275
• Series / Family: Element
• Nominal Size: 60 mm
• Configuration: Triple, Swivel, Cam cleat
• Sideplate Material: Hardcoat-anodized forged aluminum
