HARKEN 60mm Element Triple Swivel Block – 6272

Description

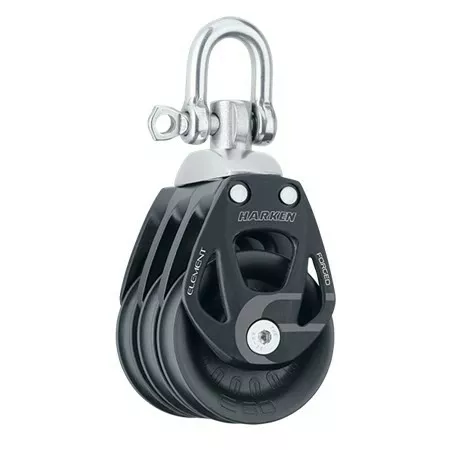

HARKEN 60mm Element Triple Swivel Block – 6272

HARKEN 60mm Element Triple Swivel Block – 6272 is a Harken Element block that combines robust forged-aluminum sideplates with a durable composite bearing sheave for dependable big-boat line handling at a value-oriented price point.

• Forged aluminum sideplates use compound curves to protect the sheave and carry load efficiently.
• Hardcoat-anodized aluminum resists corrosion in marine service.
• Tough composite journal-bearing sheave promotes long service life.
• Available Element configurations support common sheet, halyard and control-line layouts.
• Harken headpost/shackle designs allow alignment appropriate to the listed configuration.

Sheave Diameter: 60 mm (2 3/8 inches) Length: 146 mm (5 3/4 inches) Weight: 520 grams (18.2 ounces) Shackle Pin Diameter: 8 mm (5/16 inch) Maximum Line Diameter: 14 mm (9/16 inch) Maximum Working Load: 1650 kg (3638 lb) Breaking Load: 3300 kg (7276 lb)

For best results, confirm the Harken part number and system compatibility before installation, and operate the hardware within Harken’s published line-size and load limits.

Specifications

• Manufacturer: Harken
• Part Number: 6272
• Series / Family: Element
• Nominal Size: 60 mm
• Configuration: Triple, Swivel
• Sideplate Material: Hardcoat-anodized forged aluminum
