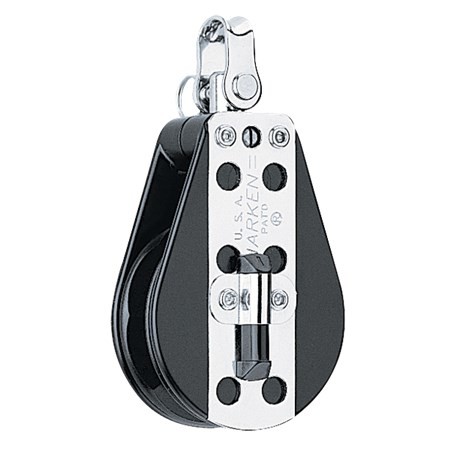

HARKEN 2.25″ Hexaratchet® Block – Swivel, Starboard – 019

Description

HARKEN 2.25" Hexaratchet® Block – Swivel, Starboard – 019

HARKEN 2.25" Hexaratchet® Block – Swivel, Starboard – 019 is a Harken Carbo-family block built for efficient line handling with a high strength-to-weight ratio and low-friction operation.

• Fiber-reinforced composite construction keeps weight low while carrying useful working loads.
• Ratchet sheave geometry increases holding power while still allowing controlled easing.
• Designed to reduce the hand load required when trimming loaded sheets.
• Configuration is purpose-built around the listed sheave, attachment and becket/cam arrangement.
• UV-resistant marine materials are selected for dependable deck service.

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.

For best results, confirm the Harken part number and system compatibility before installation, and operate the hardware within Harken’s published line-size and load limits.

Specifications

• Manufacturer: Harken
• Part Number: 019
• Series / Family: Carbo Ratchet
• Nominal Size: 2.25 in
• Configuration: Swivel
• Construction: Fiber-reinforced composite / Carbo family
• Sheave Ø (mm): 57 mm
• Sheave Ø (in): 2 1/4 in
• Length (mm): 108 mm
• Length (in): 4 1/4 in
• Weight (g): 142 g
• Weight (oz): 5 oz
• Maximum line Ø (mm): 10 mm
• Maximum line Ø (in): 3/8 in
• Maximum working load (kg): 227 kg
• Maximum working load (lb): 500 lb
• Breaking load (lb): 2000 lb
• Breaking load (kg): 907 kg
• Shackle pin Ø (mm): 5 mm
• Shackle pin Ø (in): 3/16 in
• Holding power: 10:1
• Turns: clockwise
