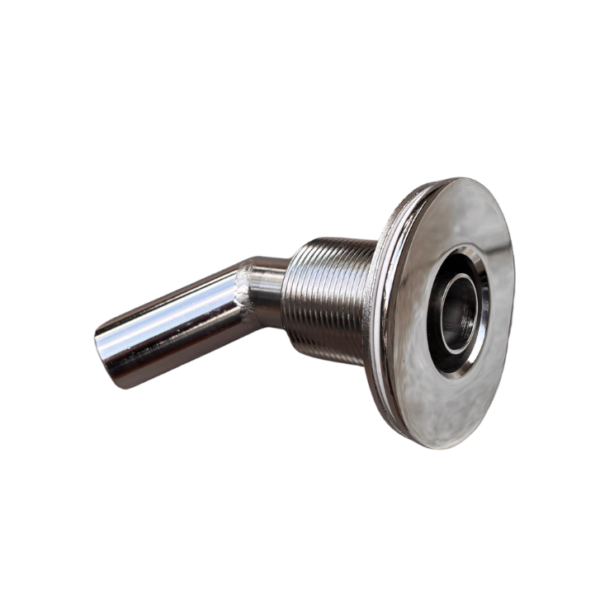

GENERAL COMPONENTS 24 mm 90° Boltless Stainless Steel Exhaust Thru-Hull Fitting – GC5045

Description

GENERAL COMPONENTS 24 mm 90° Boltless Stainless Steel Exhaust Thru-Hull Fitting – GC5045

The General Components GC5045 provides a durable exterior termination for a marine or mobile diesel heater’s 24 mm exhaust system. Its stainless steel construction is suited to hot exhaust gases and demanding installations where resistance to moisture and corrosion is essential.

• Designed for heater exhaust pipe with a 24 mm connection
• Angled connector with a 90-degree mounting base
• Boltless exterior design provides a clean, streamlined appearance
• Helps create a liquid-tight penetration while protecting the surrounding mounting surface from exhaust heat
• Suitable for marine vessels, recreational vehicles, work vehicles and other diesel-heater installations

The angled outlet helps direct hot exhaust gases away from the hull or exterior mounting surface while allowing the exhaust pipe to be routed efficiently inside the vessel or vehicle. The boltless face eliminates exposed mounting screws around the exterior flange for a cleaner finished installation.

General Components lists the GC5045 as an exhaust-system component for several BISON and WALRUS heater models. It may also be suitable for other diesel heaters using a compatible 24 mm exhaust connection; however, exhaust diameter, mounting clearance and installation requirements should always be confirmed before ordering.

Install the fitting using the sealant, exhaust clamps, heat shielding and clearances specified by the heater manufacturer. The exhaust outlet must be positioned where fumes cannot re-enter the cabin and where water cannot flow back into the exhaust system.

Specifications:

• Manufacturer: General Components
• Part Number: GC5045
• Product Type: Diesel heater exhaust thru-hull fitting
• Exhaust Connection: 24 mm
• Base Angle: 90 degrees
• Connector Configuration: Angled
• Exterior Mounting Style: Boltless
• Material: Stainless steel
• Application: Marine and mobile heater exhaust termination
• Typical Heater Range: Standard 2–9 kW heaters using a compatible 24 mm exhaust
• Compatible General Components Series: BISON and WALRUS heater systems with 24 mm exhaust connections
• Quantity: One thru-hull fitting

Compatibility:

• SYSTEM: Exhaust
• COMPATIBILITY: Bison 2.2A, Bison 2A, Eberspaecher Airtronic D2, Walrus 5C, Webasto Air Top 2000 ST, Webasto Air Top 3500 ST
