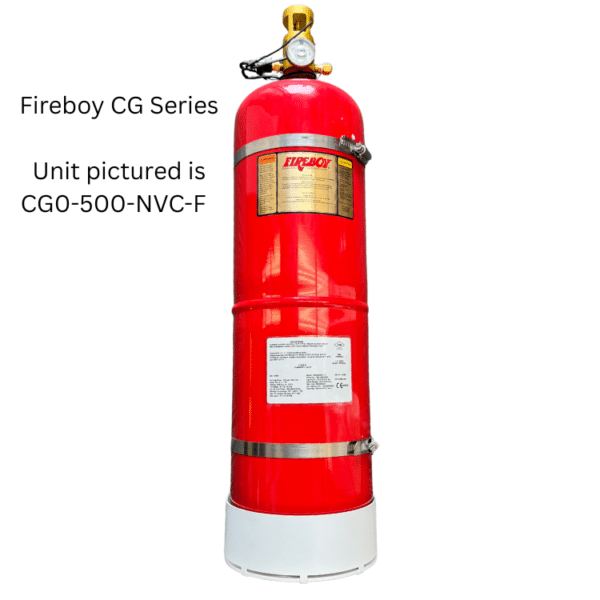

Fireboy-Xintex CG Series Automatic Fire Extinguisher (500 cu. ft.) – CG0500NVC-F

Description

Fireboy Automatic Fire Extinguisher – Cg0-500-Nvc-F

The Fireboy CG0-500-NVC-F Automatic Fire Extinguisher delivers proven clean-agent fire suppression for marine engine compartments and machinery spaces. Engineered for automatic activation at 175°F (79°C), it ensures round-the-clock protection by rapidly flooding the protected space with FK-5-1-12 clean agent. This environmentally friendly suppressant extinguishes flames in under 10 seconds, leaving no residue, posing no harm to electronics, and requiring no cleanup. With its compact, rugged design and international approvals, the CG0-500-NVC-F is a trusted solution for vessels requiring reliable, self-contained fire protection.

• Automatic activation at 175°F (79°C) for continuous, unattended fire protection.
• Fast total flooding of engine compartments up to 500 ft³ (14.1 m³) in under 10 seconds.
• FK-5-1-12 clean agent: non-conductive, residue-free, low toxicity, and EPA-approved for marine use.
• Heavy-duty bracket and helm display included for secure mounting and easy system status checks.
• International certifications including USCG, FM, CE, RINA, and BV for worldwide acceptance.

Designed specifically for marine environments, the Fireboy CG0-500-NVC-F provides boat owners with a cost-effective, maintenance-free fire suppression solution that minimizes risk and maximizes safety. Its automatic operation, eco-friendly clean agent, and global certifications make it an ideal choice for safeguarding vessels, protecting both crew and equipment with proven reliability.

• Model Number: CG0-500-NVC-F
• Volume Protected: 500 ft³ (14.1 m³)
• Agent Type: FK-5-1-12 Clean Extinguishing Agent
• Discharge Temperature: 175°F (79°C) standard (optional 155°F / 68°C)
• Cylinder Diameter: 12.2 in (310 mm)
• Total Height: 60 in (1,524 mm)
• Agent Weight: 26.9 lbs (12.2 kg)
• Shipping Weight: 27.4 lbs (12.5 kg)
• System Pressure: 360 psi @ 70°F
• Mounting: Heavy-duty steel shelf bracket (included)
• Display: Helm status display (included)
• Approvals: USCG, FM, CE, RINA, BV

Other Information:

• Extinguishant: FK-5-1-12 clean extinguishing agent, approved for marine use worldwide (EPA, SNAP, European).
• Actuation: CG2 systems, direct heat only.  MA2 Systems, direct heat and/or mechanical pull cable for manual discharge.
• Limitations: DO NOT install a Fireboy rated for less than the total volume of your engine compartment.  You may NOT combine the rated volume of two systems to equal the total volume of your engine compartment.
• Refillability: All extinguishers are currently manufactured in refillable cylinders; systems used in a fire are not refillable.
• Warranty: Three-Year limited.
• Shipping: Fire extinguishers are considered dangerous goods.  If you need this item shipped to you, please contact us for a shipping quote.

Documents:

• Information sheet
• Owner’s Manual
• Volume Calculation
