ENDURANCE Utility Winch 9 – RP5000R

ENDURANCE MARINE Utility Winch 9 – RP5000R

The ENDURANCE MARINE RP5000R is a heavy-duty 12V general-purpose utility winch built for demanding pulling and recovery applications. With a strong 3.8 HP motor, an automatic load-holding brake, and both power-in/power-out control, it’s a dependable option for anyone needing serious pulling performance in a compact package.

• 5,000 lb line pull for tough hauling and recovery tasks
• 3.8 HP 12V motor for strong, consistent pulling power
• Automatic load-holding brake for controlled operation under load
• Free-spool (free wheel) for quick line payout when positioning
• IP66 rated for dust and water resistance in harsh conditions

Inside, a three-stage planetary gear set delivers high torque with a 165:1 gear ratio. The RP5000R is supplied as a complete kit so you can get set up quickly, including a heavy-duty solenoid, wire harness, handheld remote control, roller fairlead, and steel cable with hook.

Not for overhead applications.

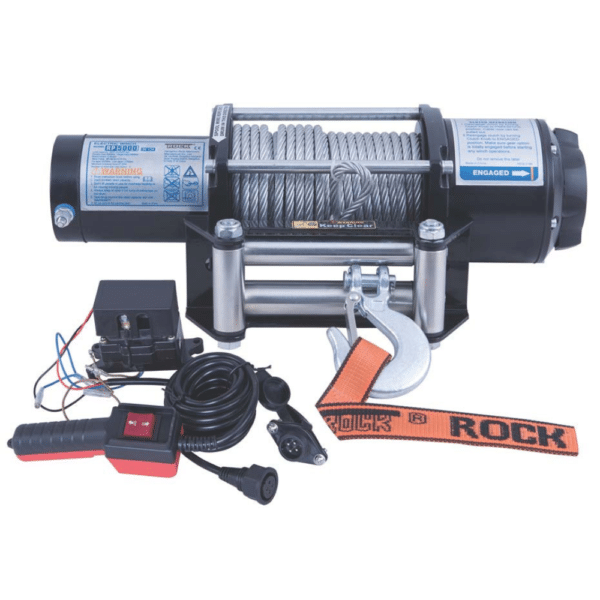

What’s in the Box

• 12V utility winch
• Handheld remote control
• Heavy-duty 250A solenoid
• Wire harness
• Roller fairlead
• Steel cable with hook (3/16″ x 50 ft)

Specifications

• Part Number: RP5000R
• Type: Electric utility winch (power in / power out)
• Voltage: 12 VDC
• Rated Line Pull: 5,000 lb
• Motor Power: 3.8 HP
• Gear Train: Three-stage planetary
• Gear Ratio: 165:1
• Brake: Automatic load-holding brake
• Free-Spool: Yes (free wheel)
• Ingress Protection: IP66
• Line: 3/16″ x 50 ft steel cable
• Winch Dimensions (L x W x H): 15.6″ x 4.6″ x 4.7″
• Weight: 29 lb
