Description

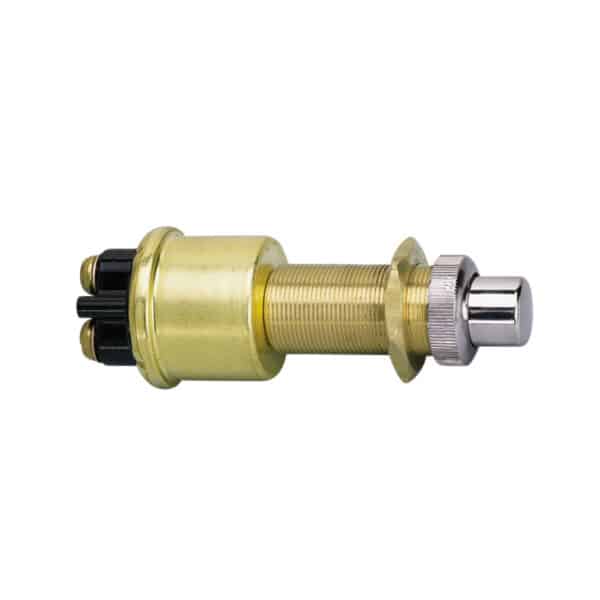

COLE HERSEE Push Button Momentary 35A – M-490-BP.
- Details: Off-On, normally Off, On with button depressed, spring return to Off
- Non-corrosive, moisture repellent brass case, stem, plunger, and hardware
- Chrome buttons and face plates
- Fits panels up to 1″
- RAted 35A @ 12VDC
- Mounting stem: 5/8″ – 32 thread x 1-3/8″
| Property |
Value |
| Current Rating (Continuous) in Amps |
35 |
| Voltage Rating (Max) |
24 |
| Circuitry |
SPST |
| Normal Position |
Normally Open |
| Input Terminals |
2 Brass Screws |
| Housing |
Brass |
| Contact Material |
Silver |
