Description

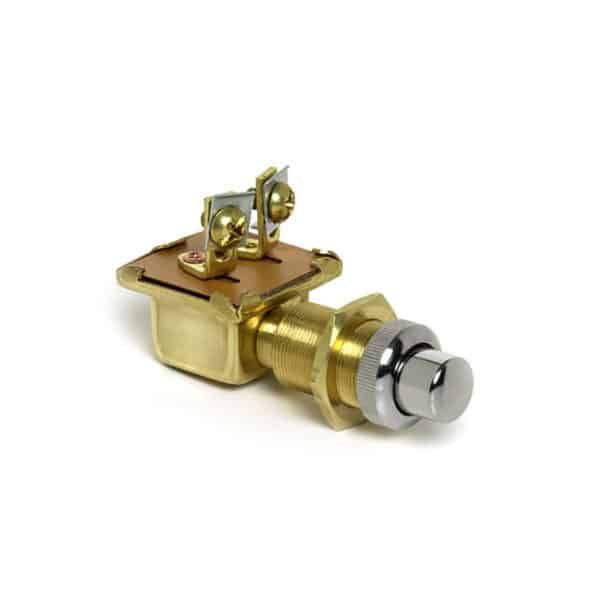

COLE HERSEE Push Button Momentary 10A Sealed – M-485. Marine grade momentary switches are suitable for the harsh environments of marine applications.
- Non-corrosive, gasket sealed body, brass case, plunger and hardware
- Chromed button and face plates
- Mounting stem is 5/8″-32 and fits panels to 3/4″
- Heavy duty construction for 6-36V, rated 10 amps @12 VDC
- Normally “off”, Off-Momentary-On, (on with button depressed) SPST
- 2 brass screw terminals
| Property | Value |
|---|---|
| Current Rating (Continuous) in Amps | 10 |
| Voltage Rating (Max) | 12 |
| Circuitry | SPST |
| Normal Position | Normally Open |
| Input Terminals | 2 Brass Screws |
| Housing | Brass |
| Contact Material | Silver |
