Description

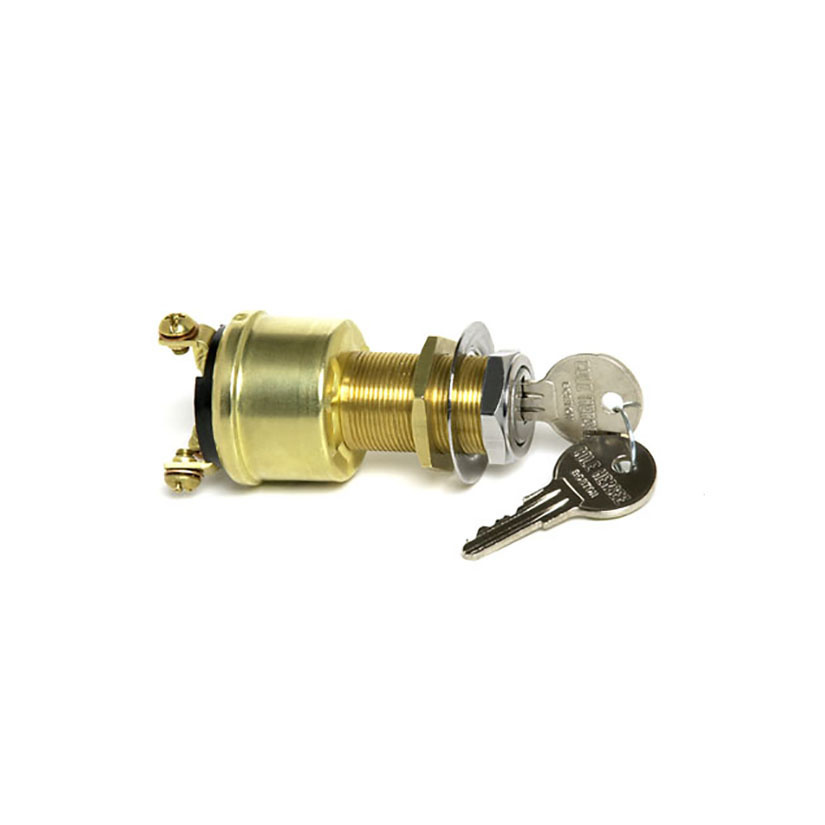

COLE HERSEE Ignition Switch 4-Position 10A – M-712-BP. This pass-thru stud boasts high installation torque values to allow the use of large cable sizes for high current applications. Stud caps are included to protect from accidental shorts.
- Corrosion resistant, moisture repellent insulators, brass terminals, case and hardware
- Heavy duty construction for 6 – 36 volts
- Coded locks with 2 brass keys
- Chrome nut and face plate
- Fits panels up through 1″ thick
- 13/16″ diameter stem
| Property | Value |
|---|---|
| Current Rating (Continuous) in Amps | 10 |
| Number of Positions | 4 |
| Positions | Acc-Off-Ign/Acc-Ign/Start with Spring Return to Ign/Acc and No Anti-Restart |
| Input Terminals | 4 Screw |
| Housing | Brass with O-Ring in Stem |
| Contact Material | Bronze |
