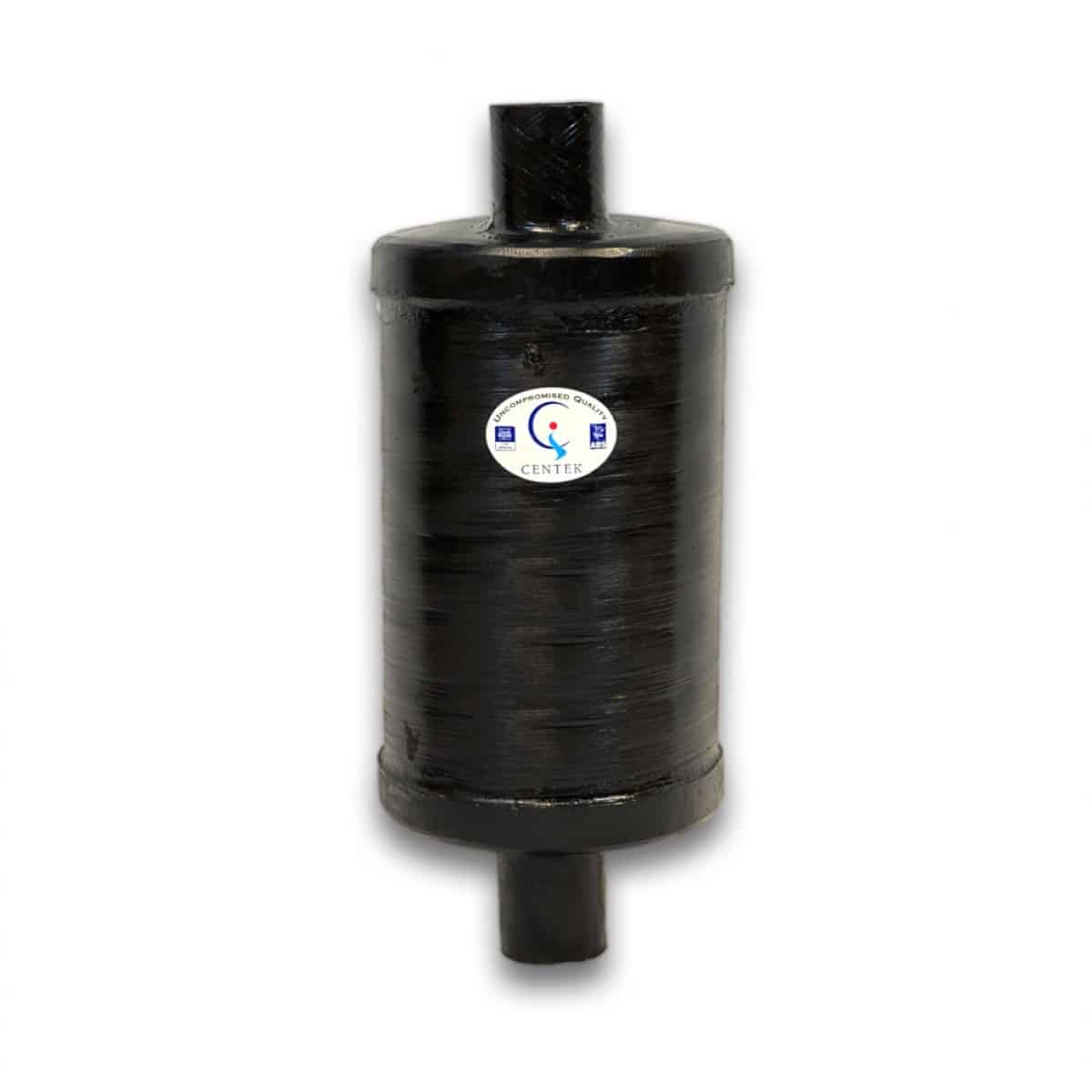

CENTEK Vernalift 3″ 10″X17.5″Inline – 1500051

Description

CENTEK Vernalift 3″ 10″X17.5″Inline – 1500051.

The Vernalift™ is the industry’s best lift muffler and meets or exceeds
the requirements of the ABYC P-1 Standards. Use with propulsion engines or generators located above or below water line. For gas or diesel
applications. In line design offers installation flexibility when limited
space is a challenge.
Process
A1 – Inlet (IN / MM)
Filament Winding CNC, Resin Transfer Molding
3.00 / 76
Glass
B – I/O Length (IN / MM)
F – I/O Offset (IN / MM)
Approvals
Corrosion-Resistant E Glass
3.00 / 76
7.52 / 191
Lloyd’s Register Type Approval
Resin
A2 – Outlet (IN / MM)
D – Diameter (IN / MM)
Color
Class 1 Fire Retardant Epoxy Vinyl Ester Thermoset
3.00 / 76
10.04 / 255
Standard Black; White, Gel-Coat, Yacht Quality, Yacht Quality Plus Available
Glass / Resin Ratio
C – Length (IN / MM)
Capacity (Gallons)
Flame Retardancy
60%
17.50 / 445
2.37
