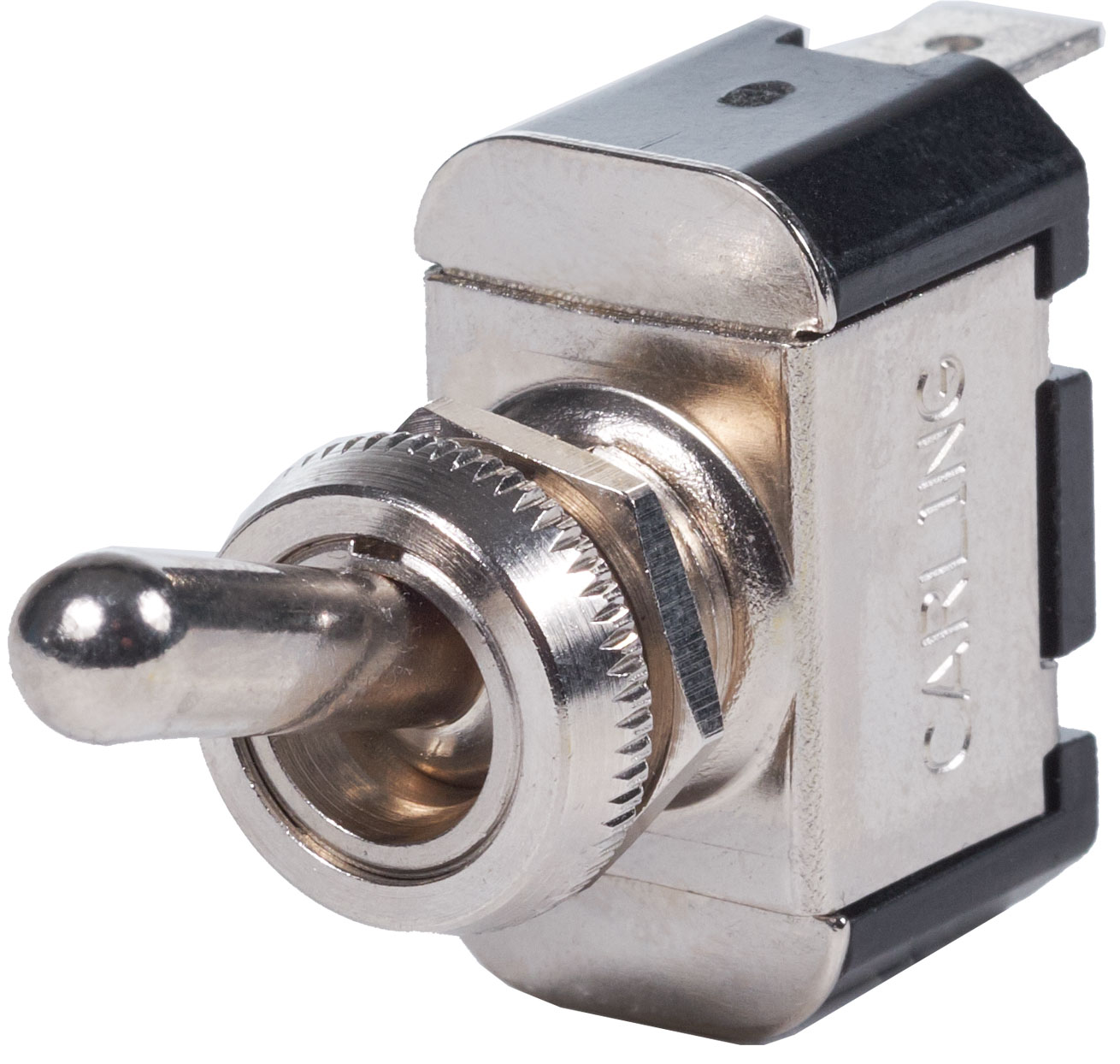

Blue Sea Systems WeatherDeck® Toggle Switch SPST – ON-OFF – 4150
The Blue Sea Systems WeatherDeck® Toggle Switch SPST – ON-OFF is designed for marine electrical switching and control.
- Specially manufactured by Carling Technologies for use in Blue Sea Systems’ WeatherDeck® Panels
- When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
- Nickel-plated brass and phenolic non-corrosive construction
- Action: OFF-ON
- Pole / Throw: SPST
For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.
Specifications
- Action: OFF-ON
- Pole / Throw: SPST
- Poles: 1
- Common Applications: lights
- Maximum Amperage: 15A @ 125V AC / 15A @ 12V DC / 10A @ 250V AC

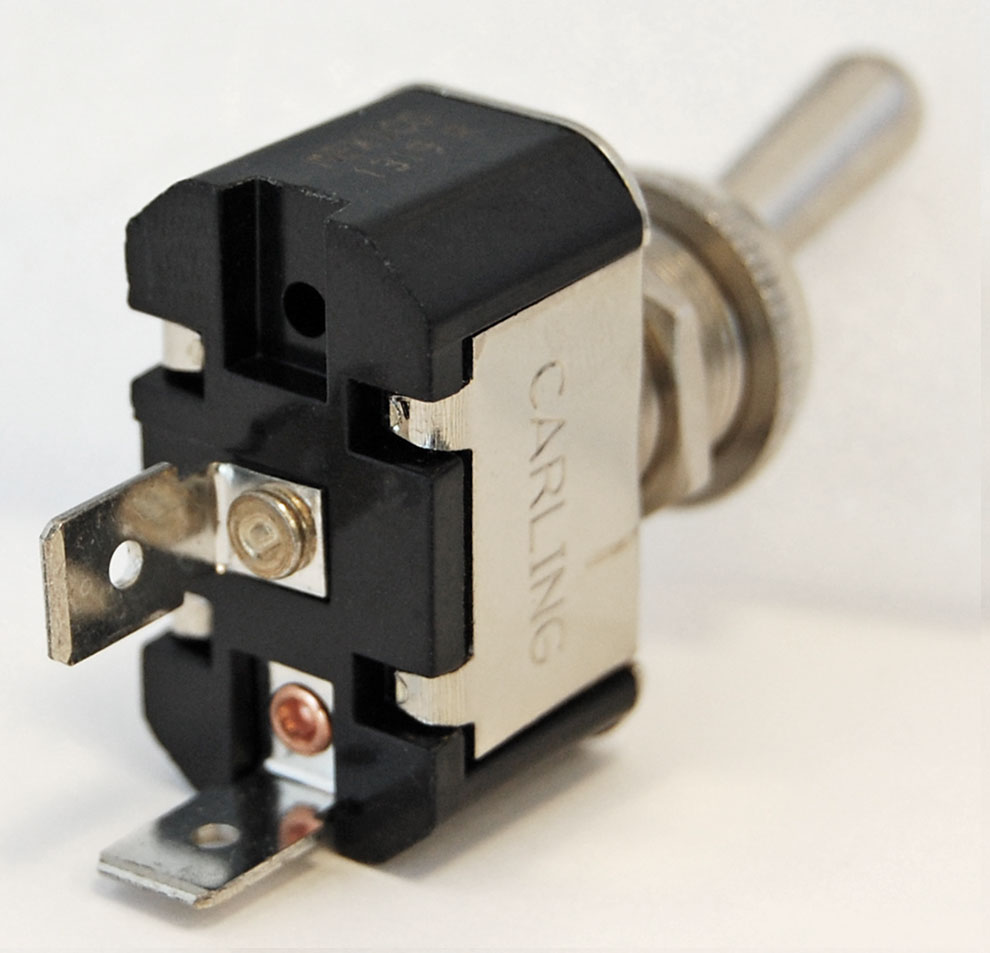

- Terminal Type: Quick Connect Tab
- Number of Terminals: 2
- Terminal Size: 0.25 in (6.35 mm)
- Weight: 0.10 lb (0.05 kg)
- Manufacturer: Blue Sea Systems
- Part Number: 4150
