Description

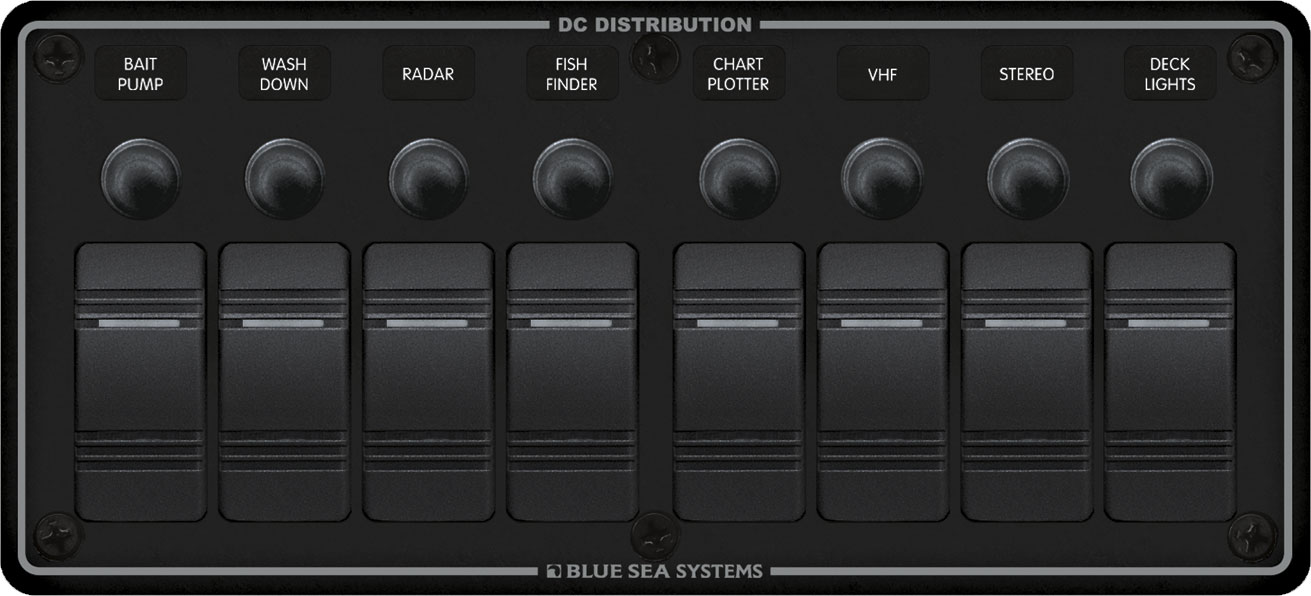

Blue Sea Systems Water Resistant Circuit Breaker Panel 8 Position-Black – 8371

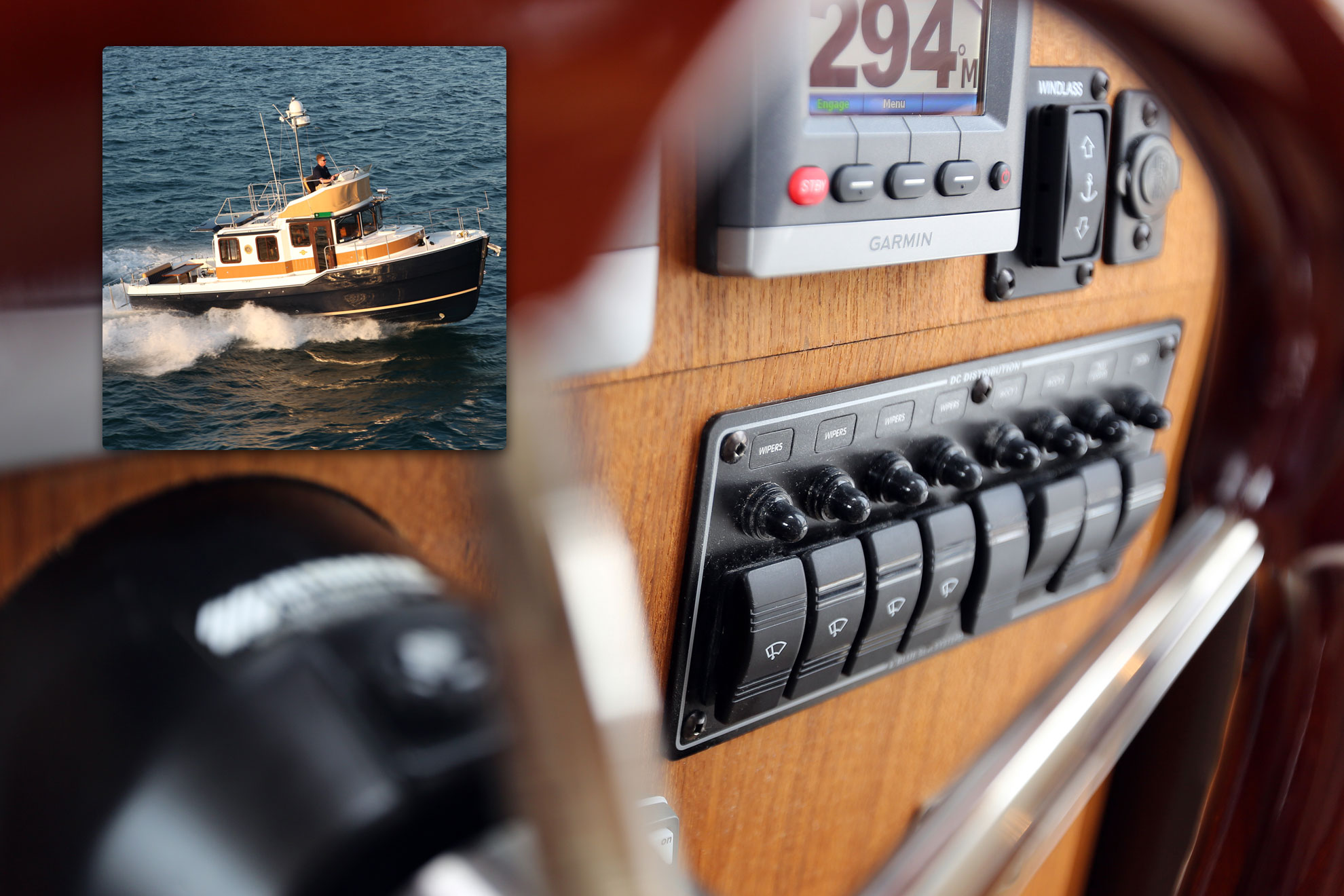

Designed for flybridge and open cockpit applications.
- Panel front is rated IP66 — Protected against powerful water jets
- Ignition protected — safe for installation aboard gasoline powered boats
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switch
- Watertight mounting gasket
For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.
Specifications
- Weatherproof: Water Resistant
- Positions: 8
- Nominal Voltage: 12V DC / 24V DC
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12V DC / 15A @ 24V DC
- Height: 4.25 in (107.95 mm)
- Width: 9.37 in (238 mm)
- Depth: 3.25 in (82.55 mm)
- Weight: 1.75 lb (0.79 kg)
- Product Dimensions: 23.8 cm L × 10.79 cm W × 8.25 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 8371
