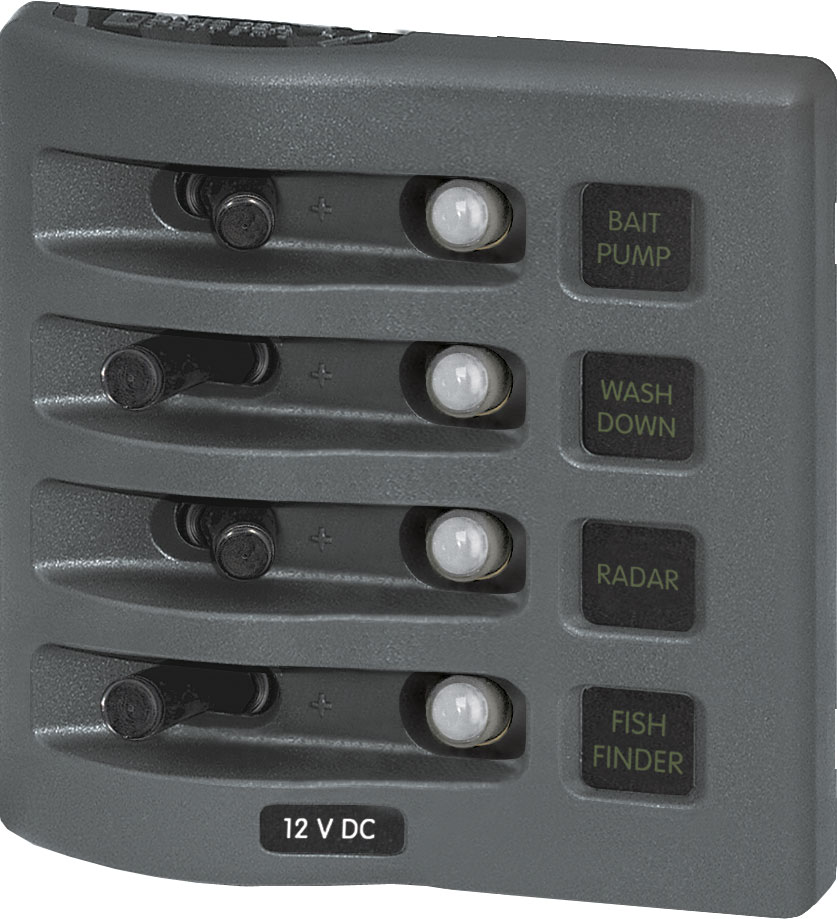

Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 4 Positions – 4374

Description

Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 4 Positions – 4374

The Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel – Gray 4 Positions is designed for marine and mobile electrical circuit protection.

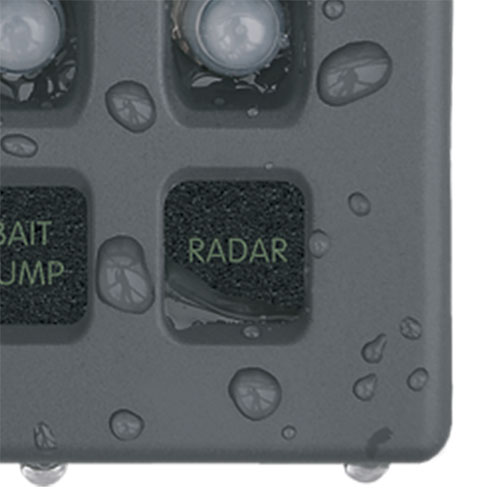

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Available in 4 and 6 circuit models

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12V DC / 24V DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12V DC (per circuit) 9A @ 24V DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA /Illuminated Circuit
• Backlighting Voltage: 12 or 24V DC
• Material: Reinforced Polycarbonate
• Height: 4.30 in (109.22 mm)
• Width: 4.25 in (107.95 mm)
• Depth: 3.50 in (88.9 mm)
• Weight: 0.97 lb (0.44 kg)
• Product Dimensions: 10.79 cm L × 10.92 cm W × 8.89 cm H
• Manufacturer: Blue Sea Systems
• Part Number: 4374
