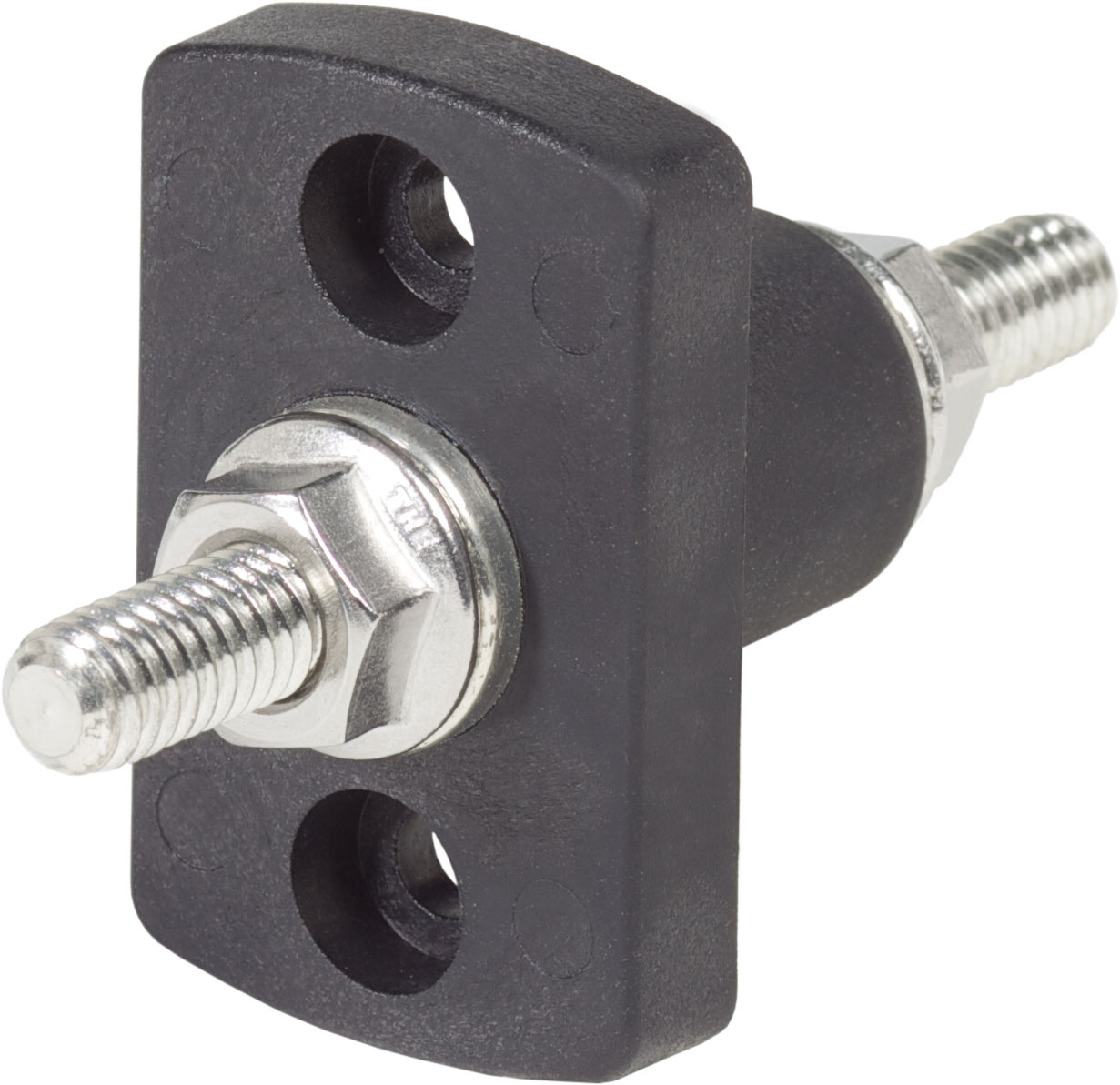

Blue Sea Systems Terminal Feed Through Connector – 5/16″-18 Studs (Black) – 2201

Description

Blue Sea Systems Terminal Feed Through Connector – 5/16″-18 Studs (Black) – 2201

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads.

• Perfect for passing high current cables through hulls, decks and bulkheads
• Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
• Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
• Rated IP66 — withstands water from heavy seas
• Designed for reliable use in marine electrical installations

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Amperage: 250A
• Color: Black
• Maximum Voltage: 48V DC
• Stud Size: 5/16″-18
• Base Material: Reinforced Thermoplastic
• Recommended Torque: 100 in-lb (11.3 N·m)
• Stud Material: tin-plated Copper Alloy
• Weight: 0.30 lb (0.14 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 2201
