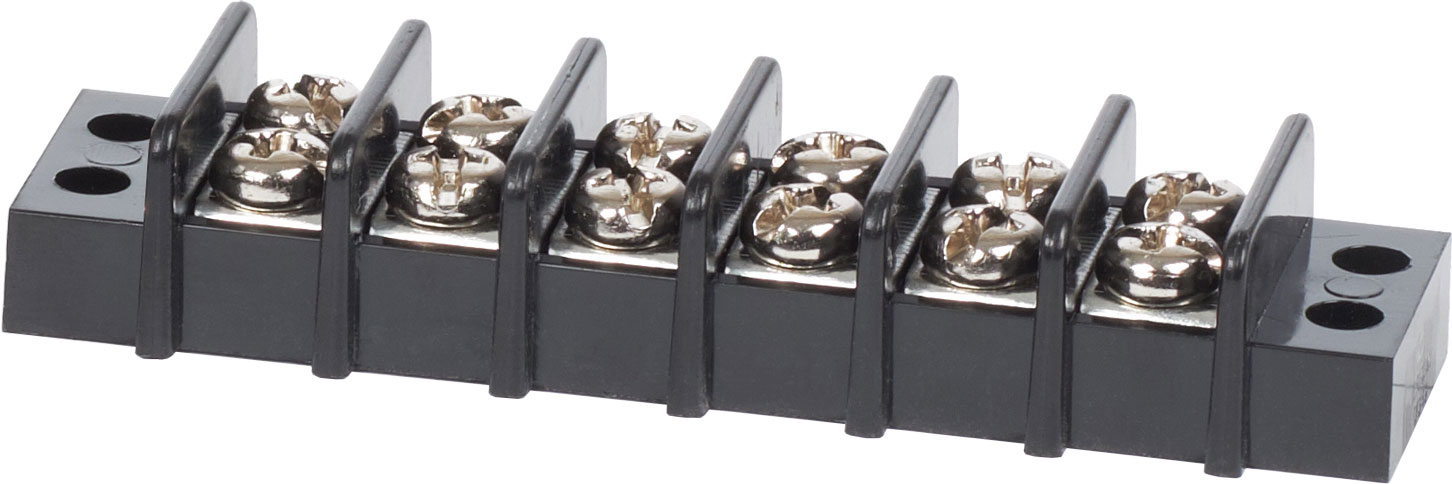

Blue Sea Systems Terminal Block 20A – 6 Circuit – 2406
The Blue Sea Systems Terminal Block 20A – 6 Circuit is designed for organized, secure marine power distribution and termination.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
- Circuits: 6
- Organizes low-voltage wiring with secure screw-terminal connection points
For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.
Specifications
- Circuits: 6
- Length: 2.91 in (73.91 mm)
- Maximum Voltage: 300V AC/DC
- Continuous Rating: 20A
- Base Material: UL 94 V0, PC
- Bus Material: Nickel-Plated Brass
- Mounting Screw: #6 [M3.5]
- Screw Material: Stainless Steel
- Screw Terminal Torque: 7 in-lb (0.79 N·m)
- Terminal Screws: M3.5
- Wire Terminal Size: #6 [M3]
- Weight: 0.08 lb (0.04 kg)
- Terminal Block Width: Approx. 1.18 in (30 mm)
- Terminal Block Height: Approx. 0.87 in (22 mm)
- Product Dimensions: 7.39 cm L × 3 cm W × 2.2 cm H
- Manufacturer: Blue Sea Systems
- Part Number: 2406
