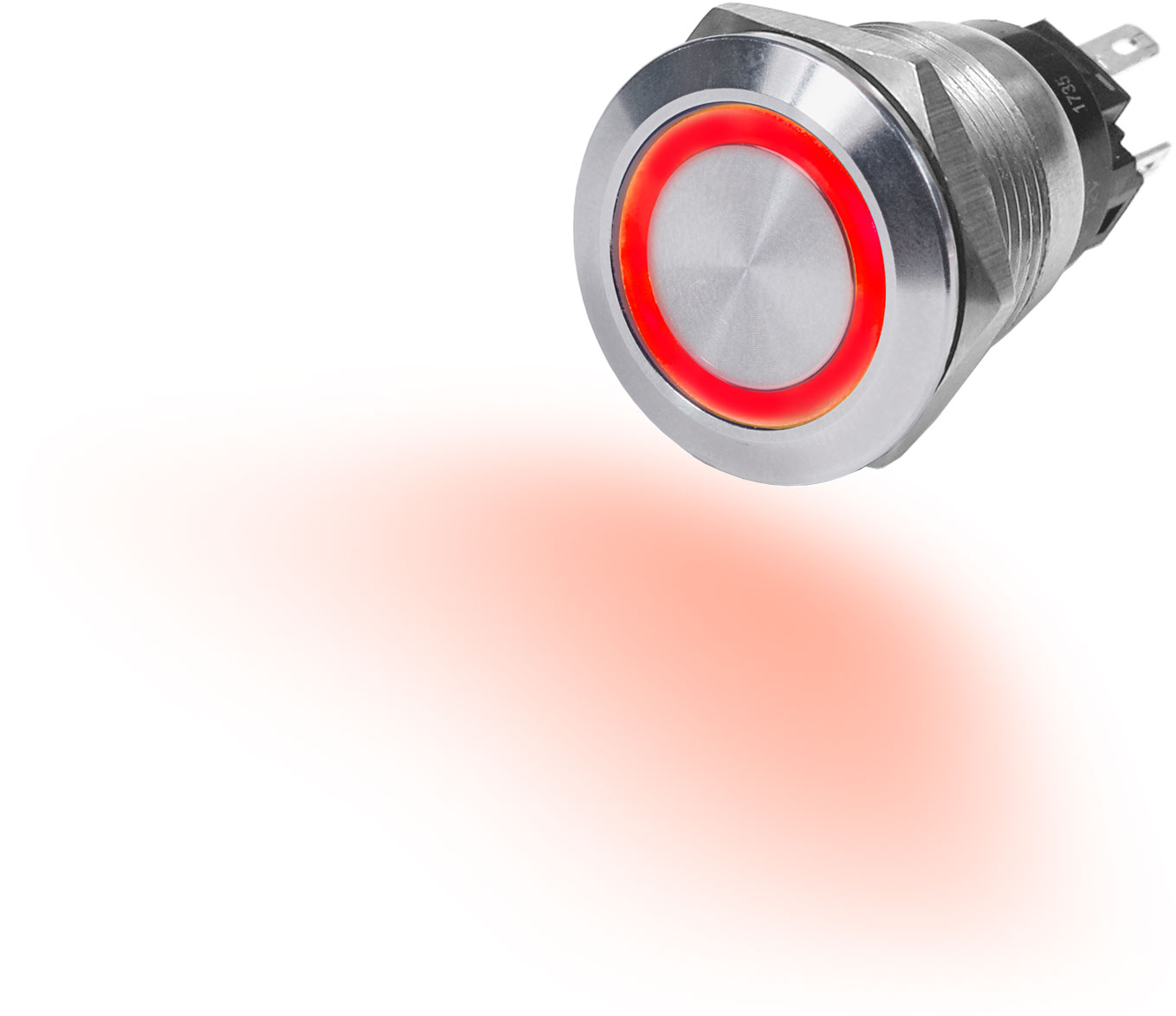

Blue Sea Systems 10A Push Button LED Ring Switch OFF-ON Red – 4162

Description

Blue Sea Systems 10A Push Button LED Ring Switch OFF-ON Red – 4162

The Blue Sea Systems 10A Push Button LED Ring Switch OFF-ON Red is designed for marine electrical switching and control.

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Available in Blue & Red
• Available in momentary and non-momentary

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC Resistive 3A @ 12V Inductive
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -30°C
• Maximum Operating Temperature: 70°C
• Minimum Storage Temperature: -55°C
• Maximum Storage Temperature: 85°C
• Illumination: Independent – Separate contacts for LED power
• Max Panel Thickness: 0.31 in (7.87 mm)
• Mounting Hole: ¾” (19 mm)
• Switching Cycles: 40,000
• Termination: 5 – 0.110inch Quick Connect terminals
• Weight: 0.20 lb (0.09 kg)
• Mounting Cutout: Common push-button breaker mounting hole is approx. 3/8 in (9.5 mm); verify exact part drawing before drilling
• Product Envelope: Approx. 1.65 in L × 0.98 in W × 0.98 in H (42 mm × 25 mm × 25 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 4162
