Description

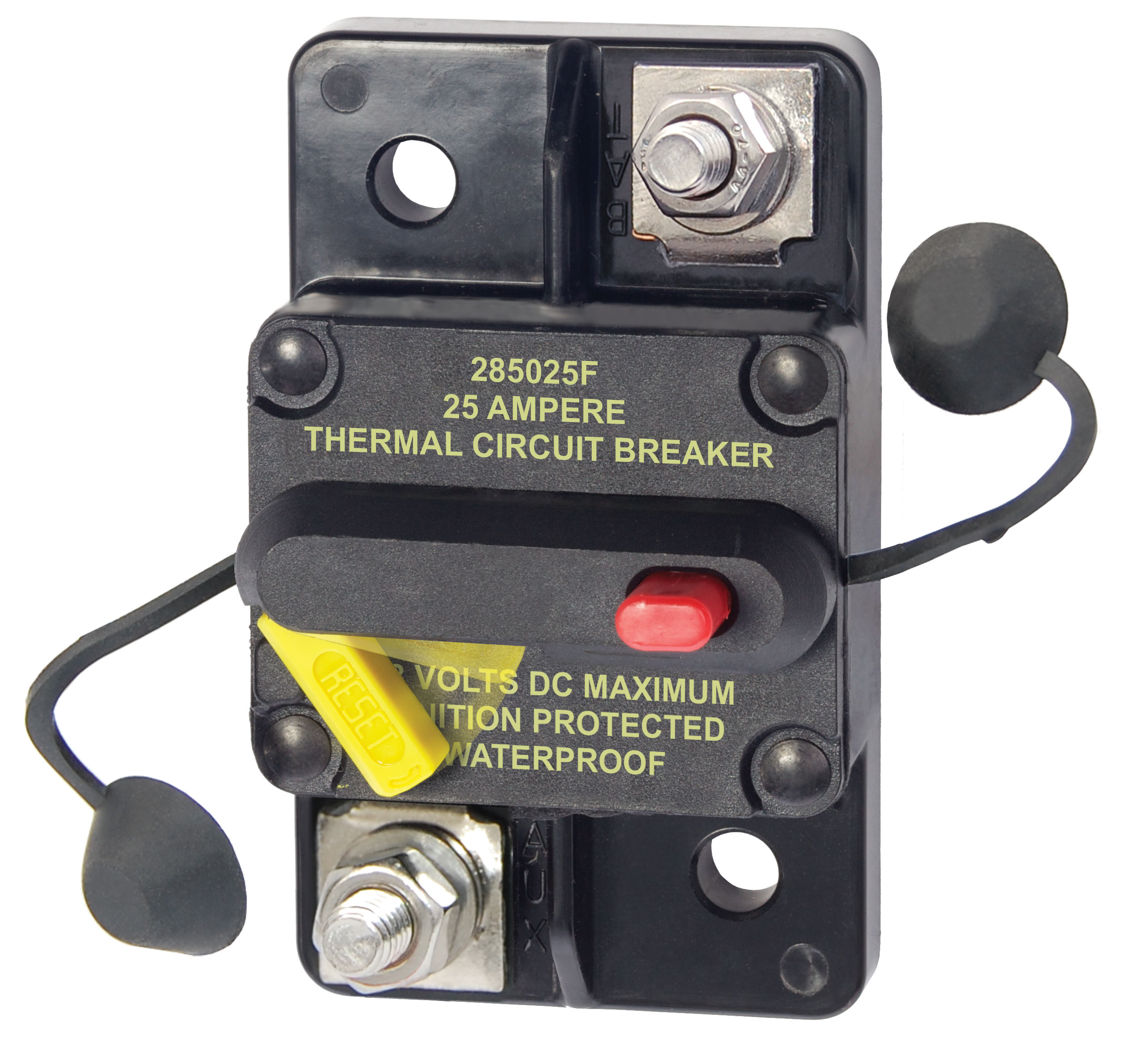

BLUE SEA SYSTEMS 285-Series Circuit Breaker – Surface Mount 25A – 7180.
- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected – Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- “Trip Free” – cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected.
Specifications | |
---|---|
Amperage | 25A |
Maximum Voltage | 48V DC |
Mounting | Surface Mount |
Circuit Breaker Type | Thermally responsive Bi-metal blade |
Terminal Stud | M6 (accepts 1/4″ Ring Terminal) |
Terminal Stud Torque | 60 in-lb (6.78 Nm) |
Interrupt Capacity | 3000A @ 48V |
Minimum Operating Temperature | -40° C |
Maximum Operating Temperature | 85° C |
Circuit Breaker Class | Type III – switchable/manual reset – trip free |
Weight | 0.50lb (0.23 kg) |
This is a special order item. Most special order items are shipped within 72 hours of ordering, however, some items are not in stock. We will let you know if the item is not available. Alternatively, you may call us at 1-866-473-0420.
