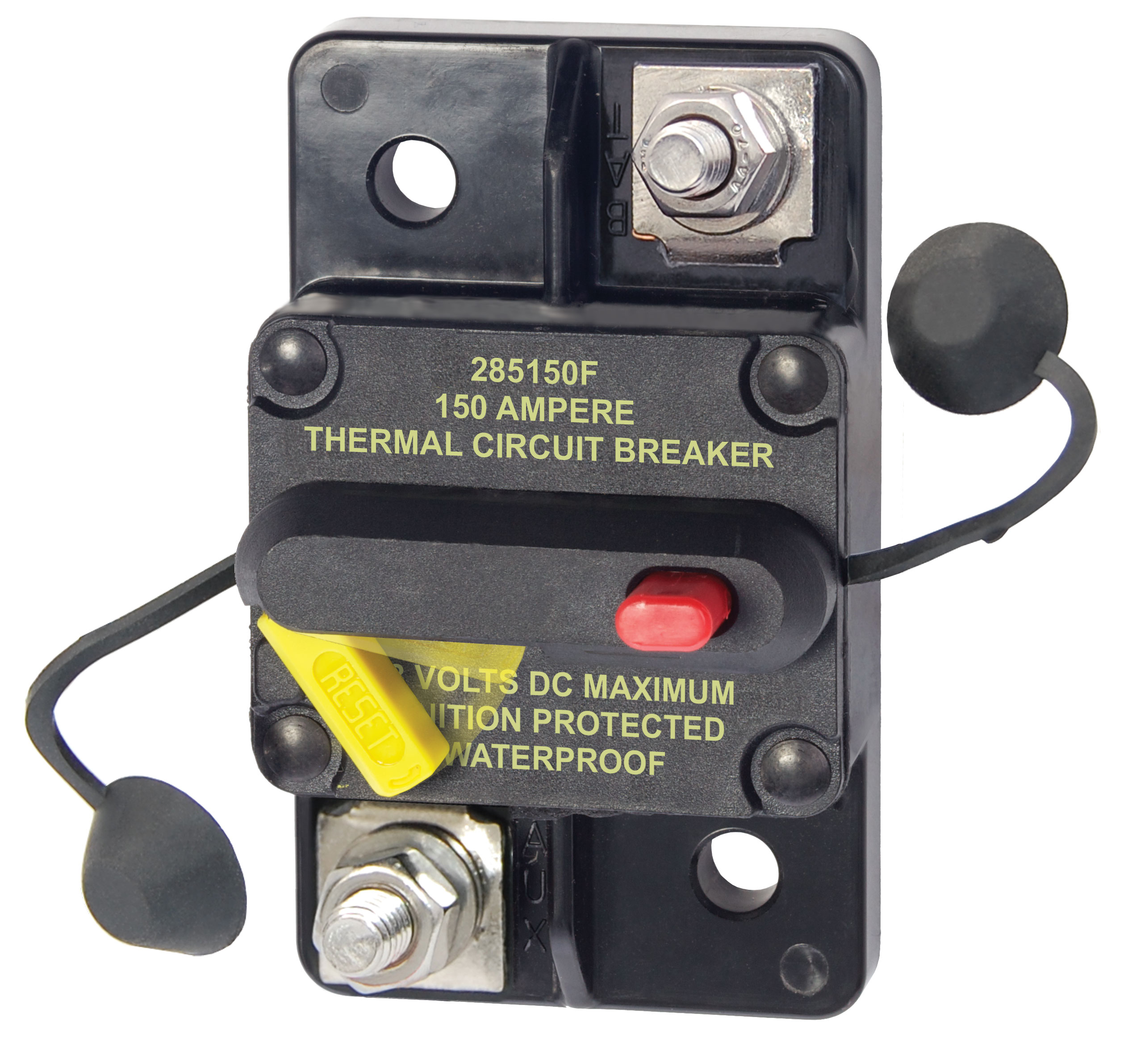

Blue Sea Systems 285-Series Circuit Breaker – Surface Mount 150A – 7189

Description

Blue Sea Systems 285-Series Circuit Breaker – Surface Mount 150A – 7189

* Do not use as a switch where high inrush currents are expected.

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 150A
• Maximum Voltage: 48V DC
• Mounting: Surface Mount
• Circuit Breaker Type: Thermally responsive bimetal blade
• Terminal Stud: M6 (accepts 1/4″ Ring Terminal)
• Terminal Stud Torque: 50 in-lb (5.65 N·m)
• Interrupt Capacity: 3,000A @ 48V
• Minimum Operating Temperature: -40°C
• Maximum Operating Temperature: 85°C
• Circuit Breaker Class: Type III – switchable/manual reset – trip-free
• Weight: 0.50 lb (0.23 kg)
• Product Envelope: Approx. 3.00 in L × 1.75 in W × 1.69 in H (76.2 mm × 44.5 mm × 43.0 mm); verify exact mounting from Blue Sea drawing for final layout
• Manufacturer: Blue Sea Systems
• Part Number: 7189
