Description

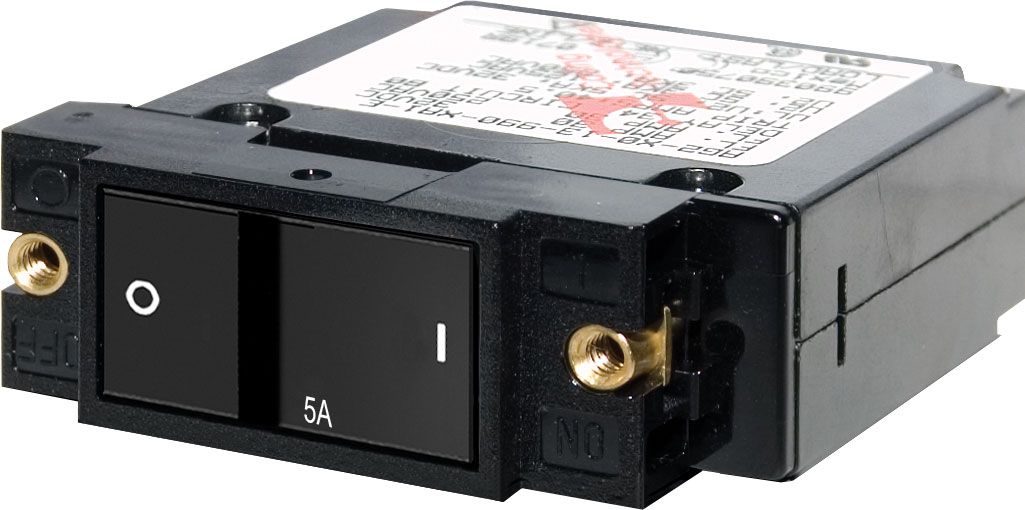

BLUE SEA SYSTEMS A-Series Flat Rocker Circuit Breaker – Single Pole 5A – 7400.
- Rocker actuator is flush in the “ON” position, eliminating the risk of accidential switching
- Color actuator indicates “OFF” position
- “Trip Free” design cannot be held “ON” during fault current condition
- 2 different actuator styles available
- Prevents accidental switching of 24 hour circuits
- International ON/OFF symbols support vertical or horizontal mounting
| Specifications | |
|---|---|
| Amperage | 5A AC 5A DC |
Actuator Style  | Flat Rocker |
| Poles | 1 |
| Maximum Voltage | 240V AC 32V DC |
| Circuit Breaker Type | Magnetic Hydraulic – trip free |
| Interrupt Capacity | 3000A @ 125V AC 1500A @ 240V AC 5000A @ 32V DC |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
| Screw Terminal Torque | 14 in-lb (1.58 Nm) |
| Switching Cycles | 10000 |
| Terminal Screws | #10-32 Stainless Steel |
| Weight | 0.16lb (0.07 kg) |
| Weight | 0.21lb (0.1 kg) |
