Blue Sea Systems A-Series ELCI Main Circuit Breaker – Double Pole 120V AC / 30A – 3102100

Description

Blue Sea Systems A-Series ELCI Main Circuit Breaker – Double Pole 120V AC / 30A – 3102100

The Blue Sea Systems A-Series ELCI Main Circuit Breaker – Double Pole 120V AC / 30A is designed for marine and mobile electrical circuit protection.

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
• Meets UL 1500 external ignition protection requirements
• Trips on short circuit, overload, or leakage to ground

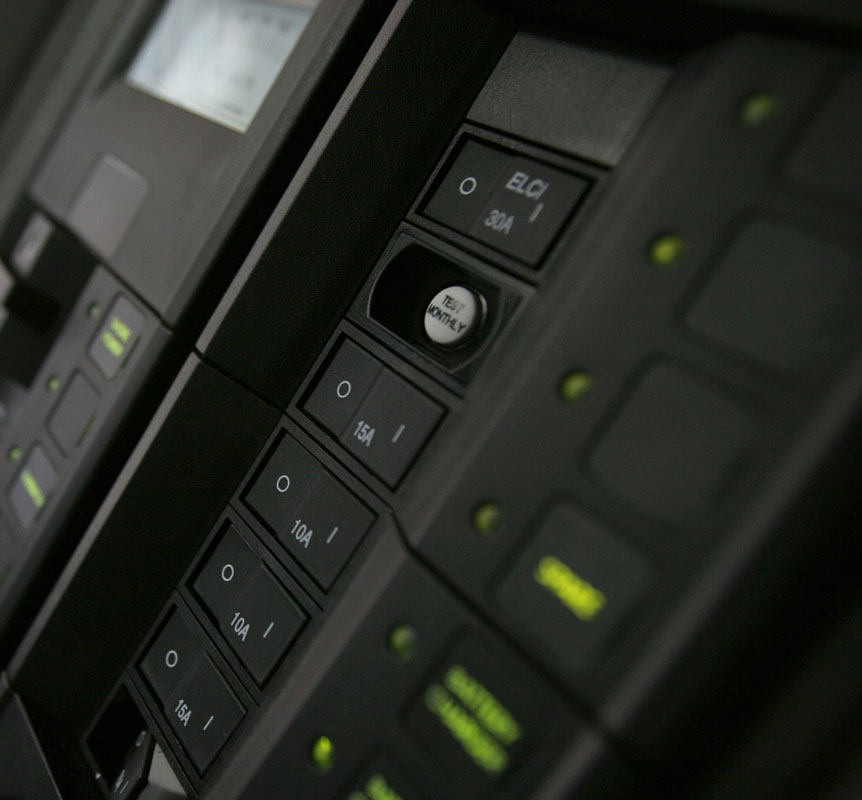

• Front panel mount — installed in a power distribution panel
• Provides resettable circuit protection for properly engineered marine electrical systems

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Amperage: 30A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Maximum Voltage: 240V AC / 120V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic – trip-free
• Interrupt Capacity: 5,000A
• Minimum Operating Temperature: -35°C
• Maximum Operating Temperature: 65°C
• Leakage Trip Amps: 30mA
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 N·m)
• Switching Cycles: 10,000
• Weight: 0.85 lb (0.39 kg)
• Breaker Body Envelope: 1.90 in D × 1.50 in W × 2.50 in H (48.3 mm × 38.1 mm × 63.5 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 3102100
