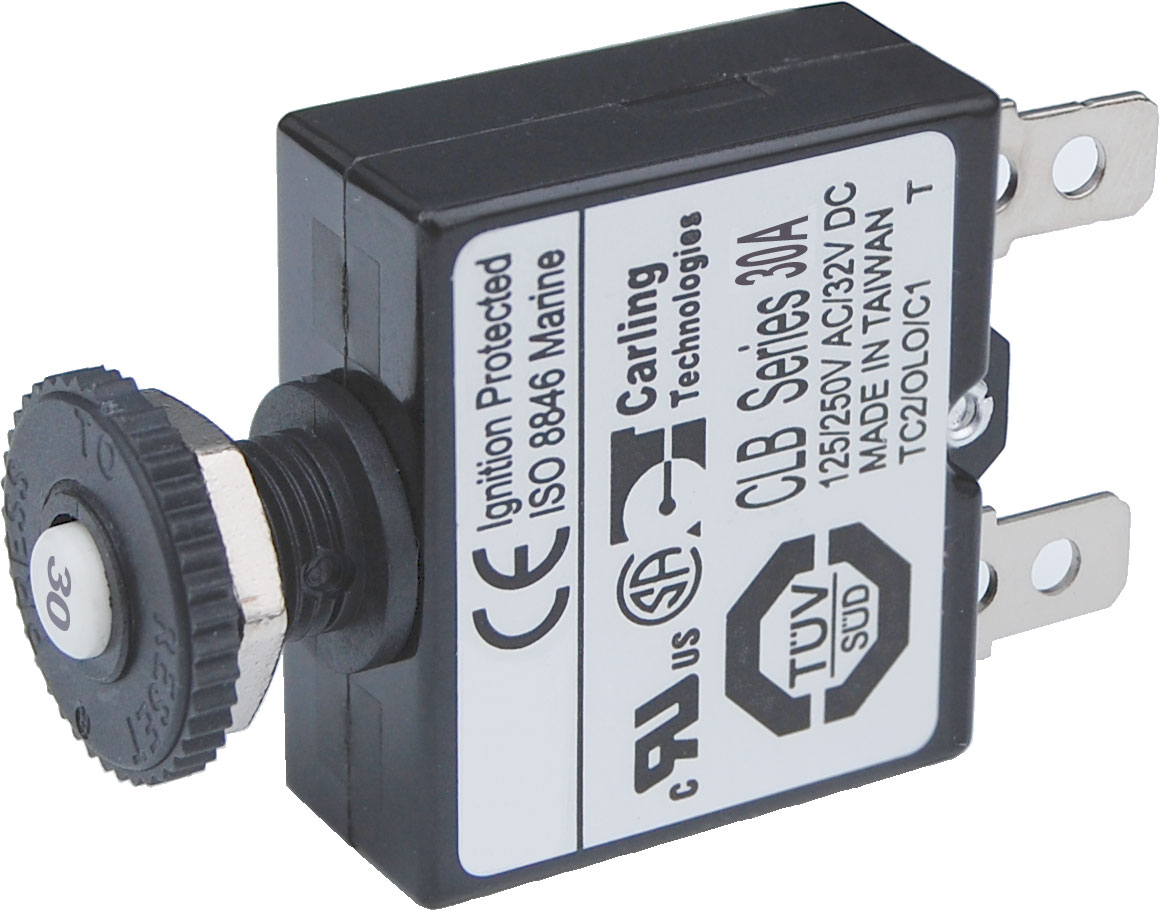

Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker – 30A – 7059

Description

Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker – 30A – 7059

The Blue Sea Systems Push Button Reset Only Quick Connect Circuit Breaker – 30A is designed for marine and mobile electrical circuit protection.

• Branch circuit breakers (can also be used for 24-hour circuit protection)
• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition

For best results, match the fuse or breaker rating to the protected conductor and load, and confirm voltage, interrupt rating, mounting clearance, and terminal requirements before installation.

Specifications

• Mounting Cutout: Common push-button breaker mounting hole is approx. 3/8 in (9.5 mm); verify exact part drawing before drilling
• Product Envelope: Approx. 1.65 in L × 0.98 in W × 0.98 in H (42 mm × 25 mm × 25 mm)
• Manufacturer: Blue Sea Systems
• Part Number: 7059
