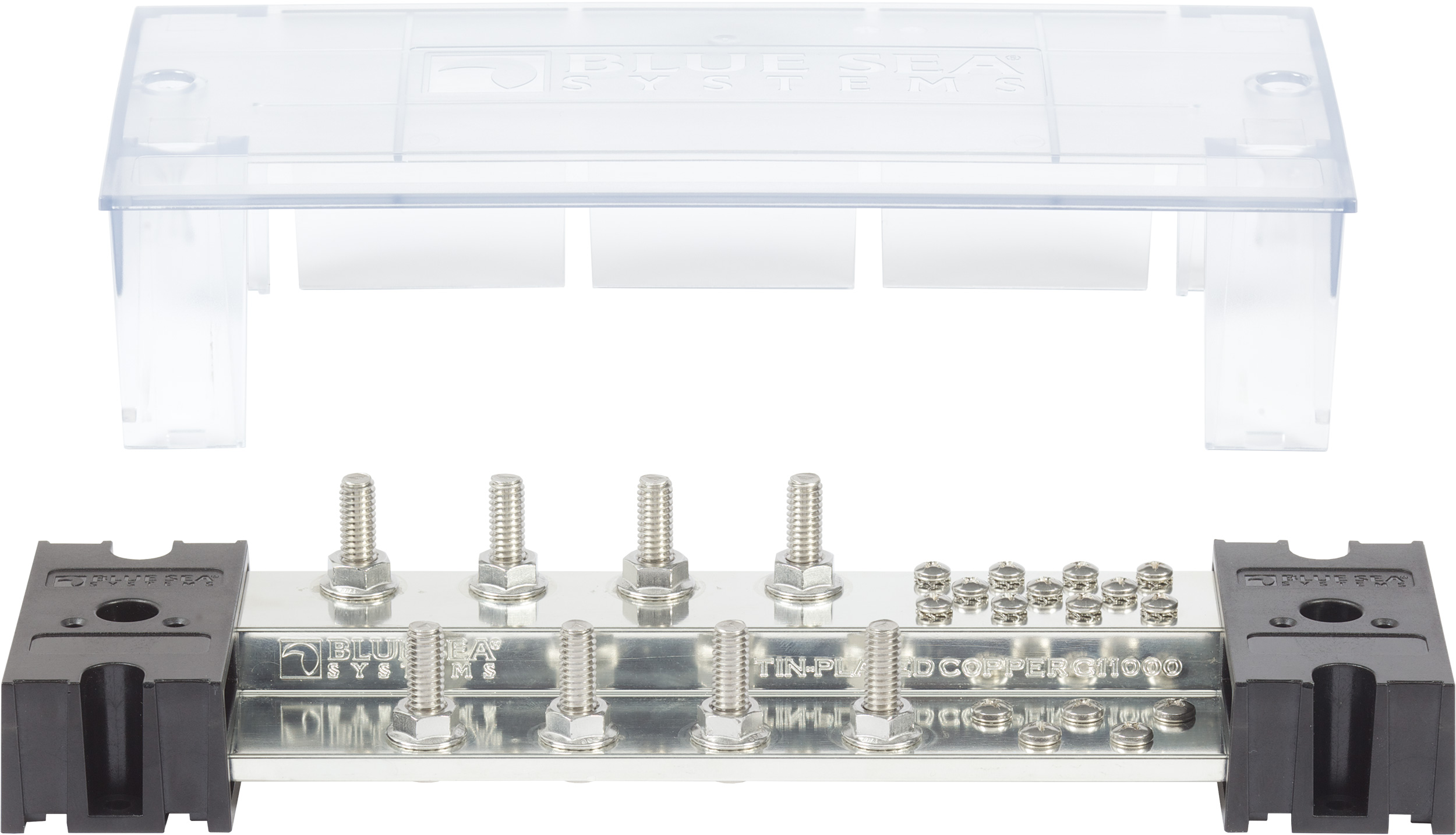

Blue Sea Systems PowerBar 1000 – 8 5/16″ Terminal Studs – 1992

Description

Blue Sea Systems PowerBar 1000 – 8 5/16″ Terminal Studs – 1992

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks. The density of the wire loom compared to traditional bus bars.

• 1,000 Amp busbar for large complex wiring systems Tin plated pure electrical copper for maximum conductivity Stepped bus design offers two elevations for conductors which doubles
• 1,000 Amp busbar for large complex wiring systems
• Tin plated pure electrical copper for maximum conductivity
• Stepped bus design offers two elevations for conductors which doubles
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables

For best results, confirm electrical ratings, conductor sizes, mounting requirements, and compatibility with the rest of the system before installation.

Specifications

• Maximum Voltage: 150V
• Number of Terminal Studs: 8
• Terminal Type: 5/16″-18 Stud
• Terminal Stud Torque: 120 in-lb (13.56 N·m)
• Continuous Rating: 1000A
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Accepts #10 (M5) Screws
• Screw Terminal Torque: 18 in-lb (2.03 N·m) #10-32 15 in-lb (1.69 N·m) #8-32
• Terminal Screws: #10-32 #8-32
• Weight: 6.00 lb (2.72 kg)
• Manufacturer: Blue Sea Systems
• Part Number: 1992
